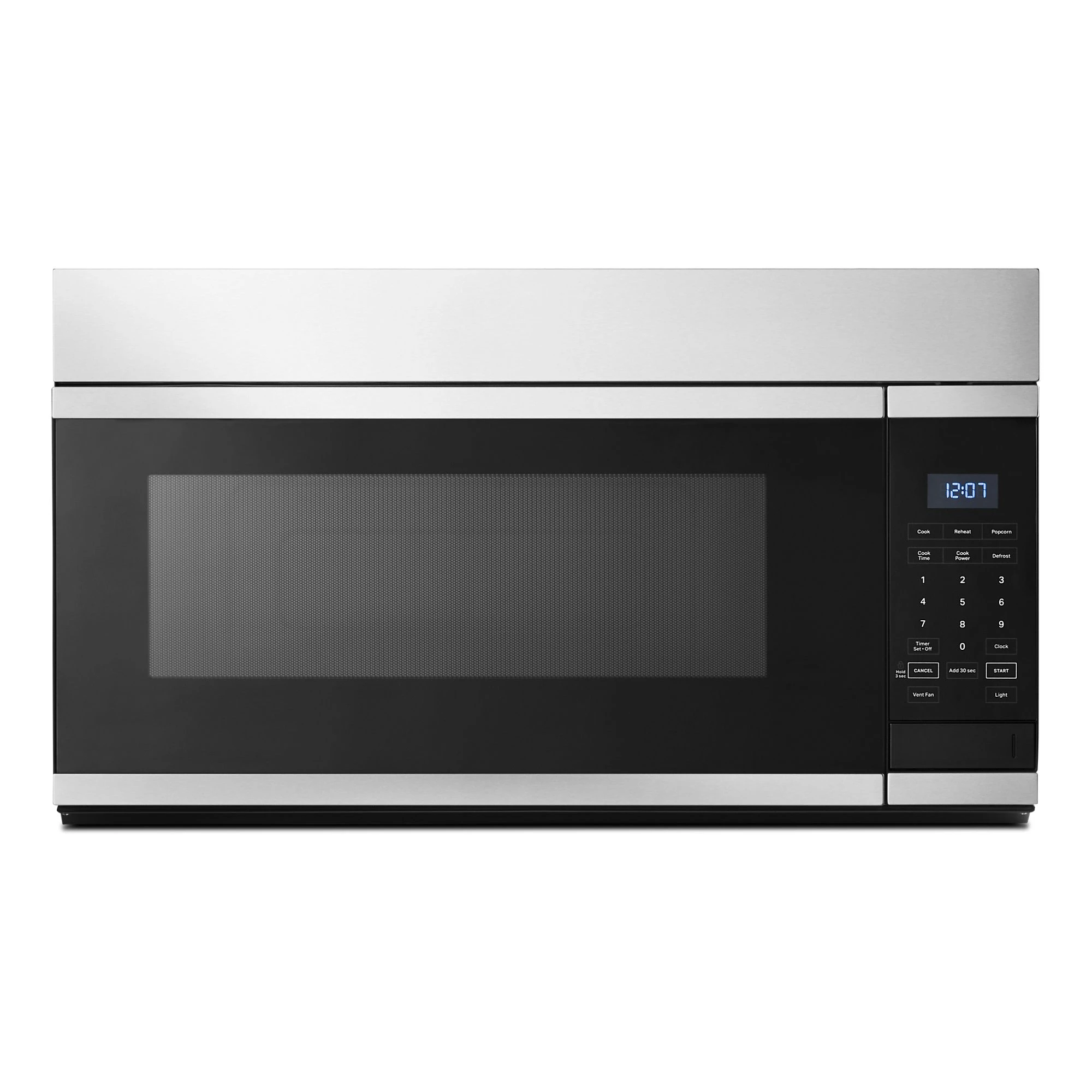

Name: 1,000-Watt Over-the-Range Microwave - 1.7 cu. ft
Brand: Amana
SKU: UMV1170LS
Availability: BackOrder

1,000-Watt Over-the-Range Microwave - 1.7 cu. ft

Model : #UMV1170LS

1,000-Watt Over-the-Range Microwave - 1.7 cu. ft

Model: UMV1170LS

1,000-Watt Over-the-Range Microwave - 1.7 cu. ft

Model: UMV1170LS

Color : Stainless Steel

Key Features

1.7 cu. ft. capacity with 1,000-watt cooking power
2-Speed, 300 CFM motor class
Add 30 Seconds Option
10 Power Levels

Description

Whatever meal you want to cook, this smooth, stainless steel, 1000 watt microwave will serve it up. It offers the microwave power, watts and capacity to cook what you want, how you want it. Plus, it comes with features to handle everything from popcorn to dinner in one simple and convenient microwave hood combination.

Documents

Installation Instructions

View | Download

PDF, 6.63 MB

Available from Roberts Appliance repair, serving customers throughout Portland . White House.

Features

Specifications

Features

1.7 cu. ft. capacity with 1,000-watt cooking power

1,000 watts of power in 1.7 cu. ft. capacity allows you to cook dishes of various sizes with ease, so they're hot and ready to eat when you are.

2-Speed, 300 CFM motor class

Helps remove smoke, odor and moisture from any meal with 2-Speed, 300 CFM motor class hood venting to help keep your kitchen clean.

Add 30 Seconds Option

Quickly set the microwave timer to 30 seconds or add it to already in-progress cooking time with the touch of a button.

10 Power Levels

Select from 10 power levels to ensure your meal comes out just how you like it or to follow a specific recipe’s instructions.

Specifications

Certifications

ADA Compliant	No, No
CEC Listed	Yes
Prop 65	Yes
UL	Yes

Exterior Details

Cabinet Color	Stainless
Door Opening Direction	Left

Dimensions

Capacity	1.7 cu. ft.
Depth Closed Excluding Handles	15-1/2 in
Depth Excluding Doors	14-1/8 in
Depth With Door Open 90 Degree	39-3/8 in
Depth	15-1/2 in
Gross Weight	69-3/5 lbs
Height	17-1/8 in
Interior Depth	14 in
Interior Height	9-1/2 in
Interior Width	21-1/8 in
Net Weight	50 lbs
Width	30 in

Controls

Control Location	Right
Control Type	Electronic Touch
Convenience Cooking Controls	Yes
Display Color	Blue
Electronic Display Type	LED
Microwave Selections	Add 30 Seconds, Beverage, Control Lock, Cook Power, Cook Time, Cook/Start, Defrost, End of Cycle Signal, Fresh Vegetable, Frozen Entree, Frozen Vegetable, Off/Cancel, Popcorn, Reheat, Soup, T
Number of Convenience Control Pads	15
Number of Keypads	23
Number of Power Levels	10
Number of Quick Touch/One-Touch Selections	1
Number of Vent Speeds	2
One Touch Cooking	No
Microwave Selections	Add 30 Seconds, Beverage, Control Lock, Cook Power, Cook Time, Cook/Start, Defrost, End of Cycle Signal, Fresh Vegetable, Frozen Entree, Frozen Vegetable, Off/Cancel, Popcorn, Reheat, Soup, T

Ventilation Details

CFM Motor Class	300
Duct Direction	Vertical or Horizontal
Duct Outlet Size	3.25 W x 10 H in
Duct Type	Rectangular
Fan Speed Indicator	Yes
Filters	Charcoal Odor Removing Filter
Night Light	Yes
Vent Fan Location	Back
Ventilation Type	Updraft
Venting	Exterior or Recirculating

Details

Blower Type	Centrifugal
Cavity Finish	Powder Coat
Clock	Yes
Door Opening Direction	Left
Door Release	Push Button
Grill	No
Microwave Interior Light	Incandescent
Microwave Type	Over-the-Range
Turntable	Recessed
Turntable Diameter Size	12 in
