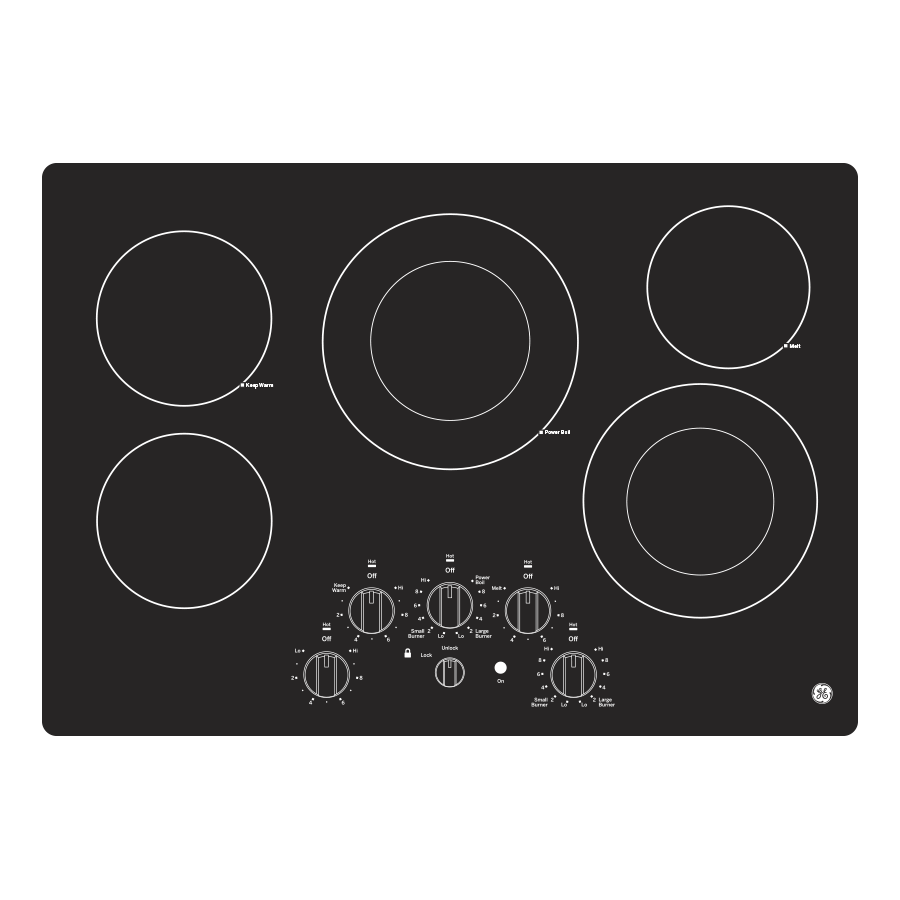

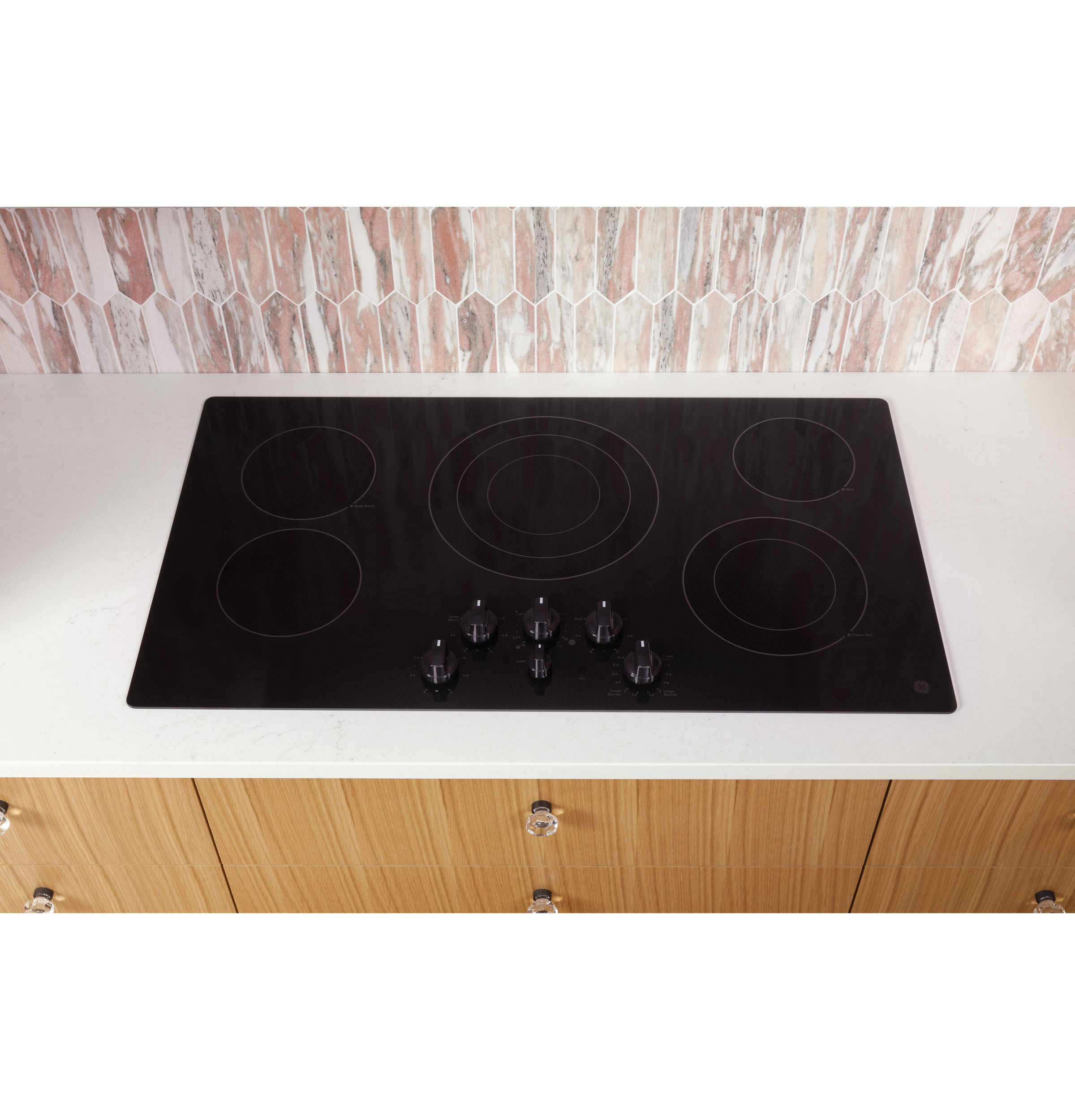

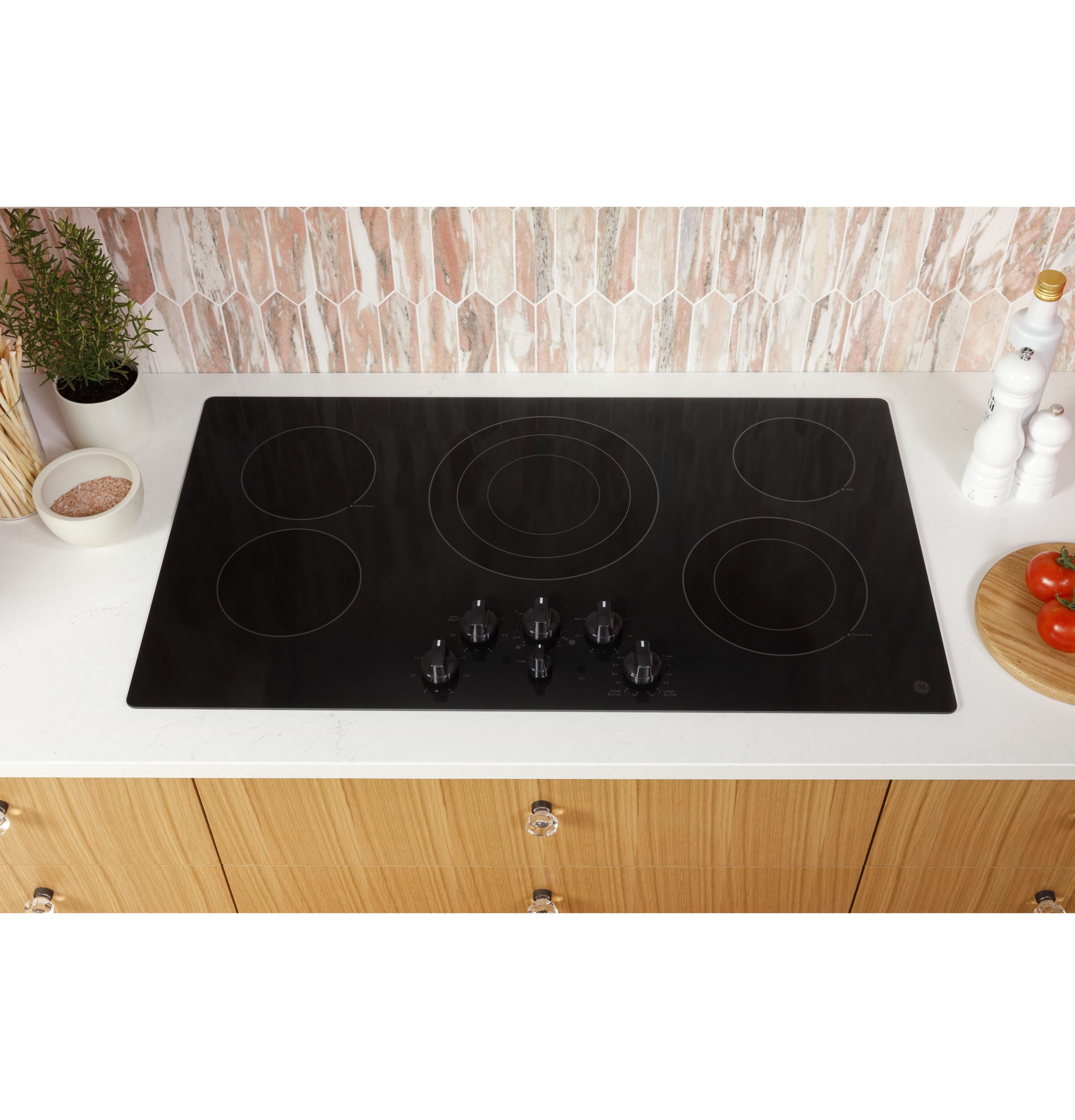

30" Built-In knob Control Electric Cooktop - JEP5030DTBB
Rebate AvailableColor : Black
Current Rebates
Key Features
Additional Power Boil Dual-Ring Element (2,200W)
Keep Warm Setting
Control Lock
Hot Surface Indicator Lights
Fit Guarantee
Melt Setting
Easy Clean Surface
Power Boil on Dual-Ring Element (3,100W)
Description
Available from Roberts Appliance repair, serving customers throughout Portland . White House.
Features
Additional Power Boil Dual-Ring Element (2,200W)
Cook more dishes quickly with an additional 2,200-watt flexible cooking element that rapidly boils water in different pan sizes

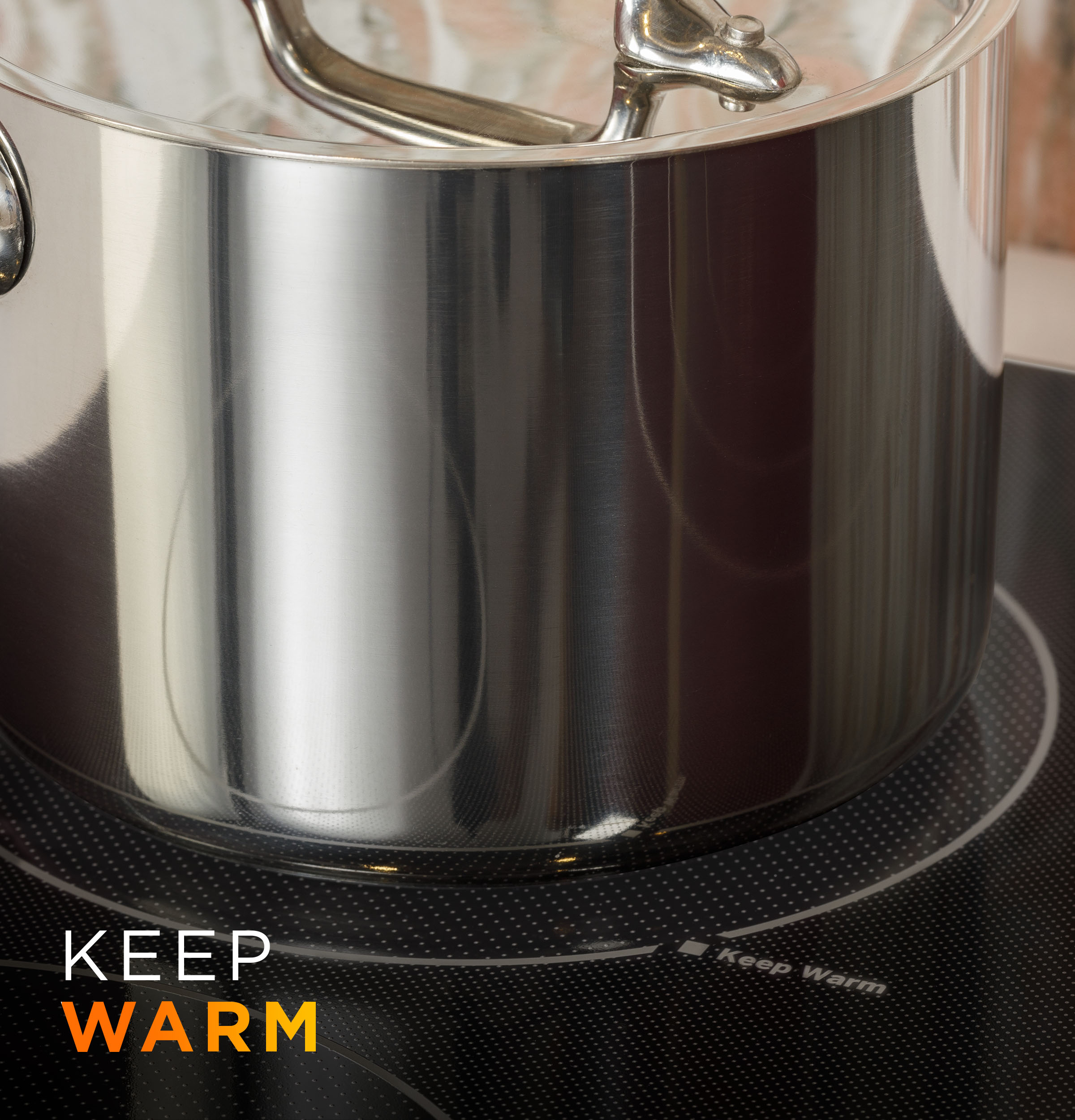

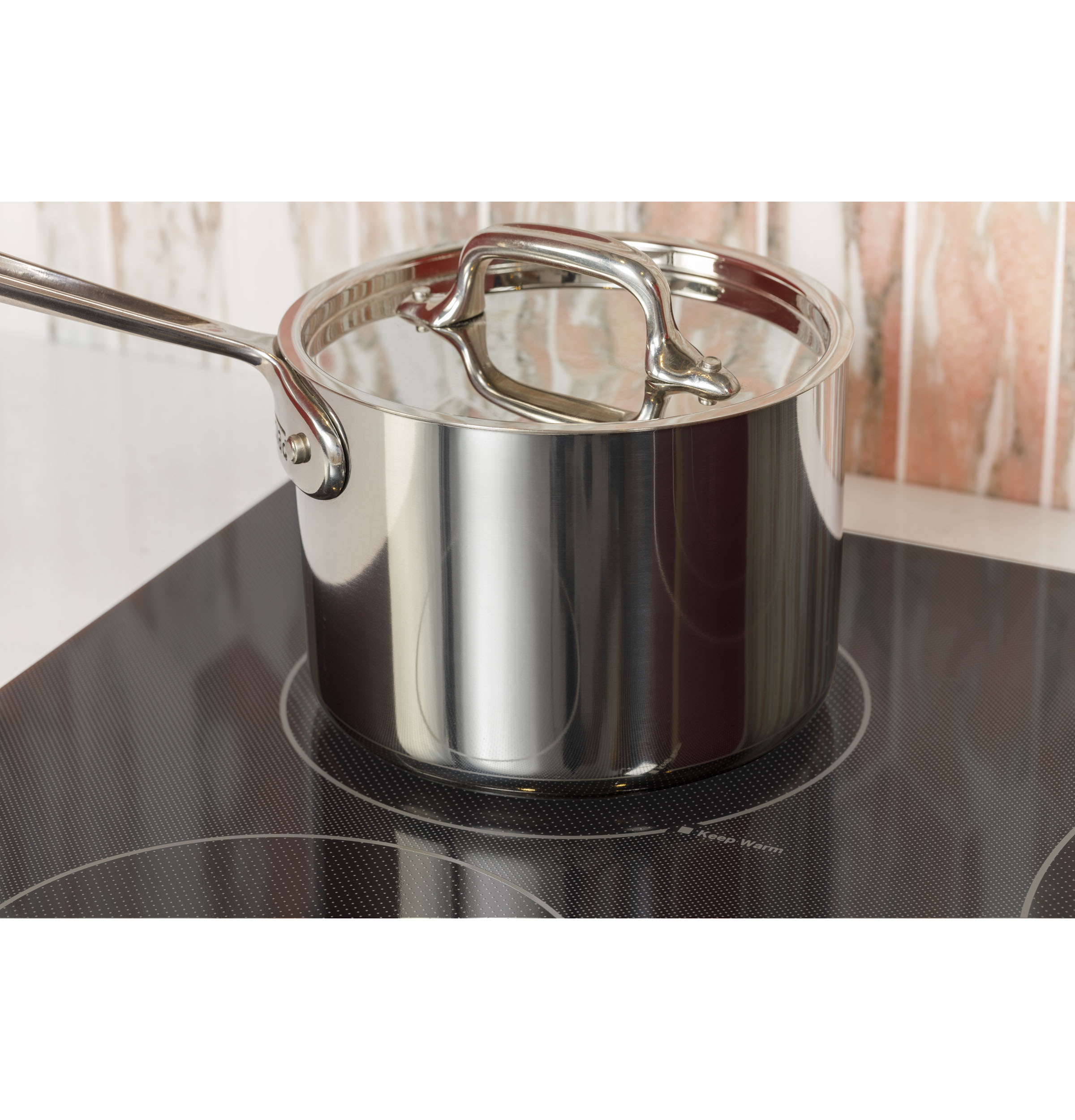

Keep Warm Setting
This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water

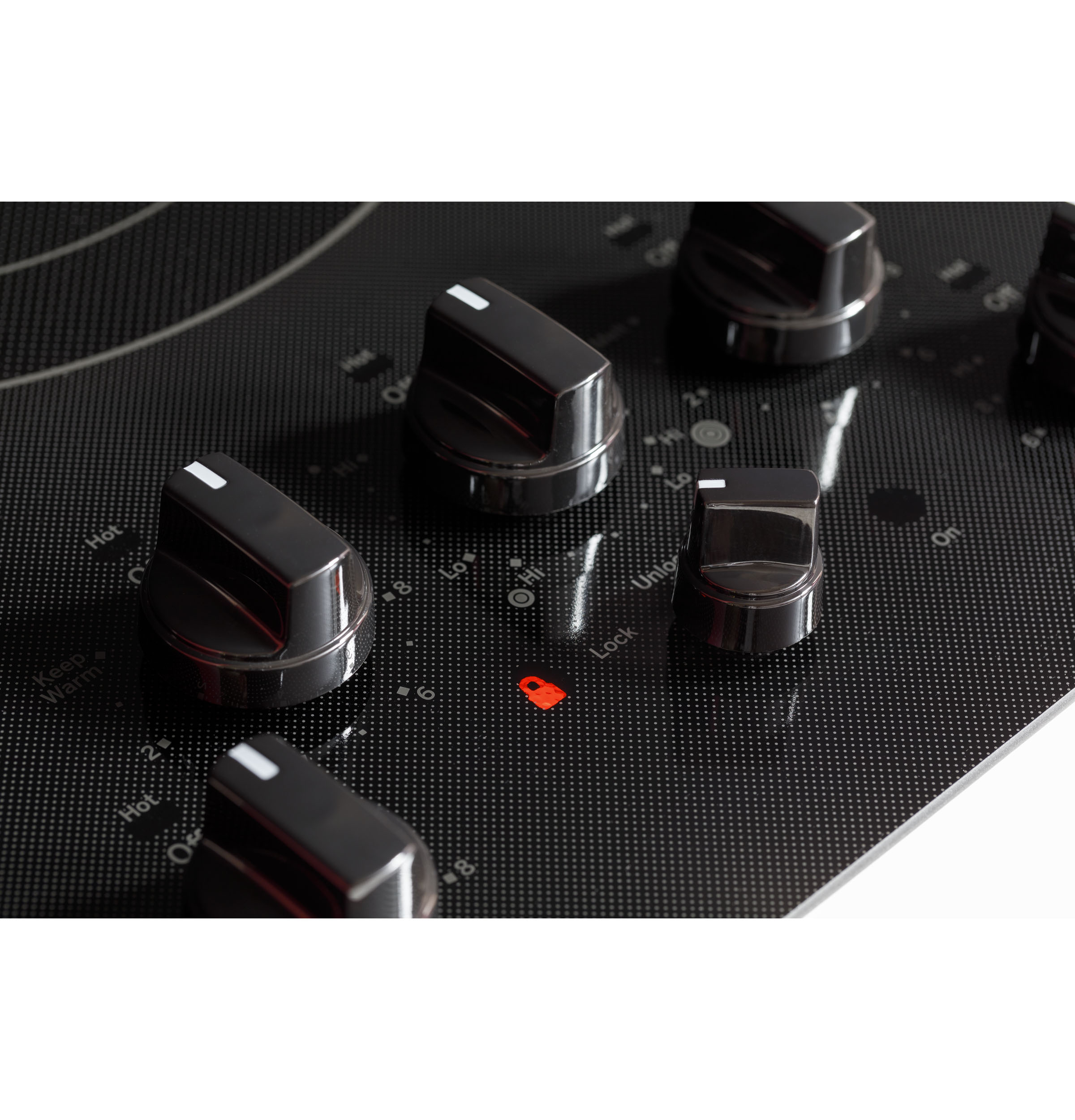

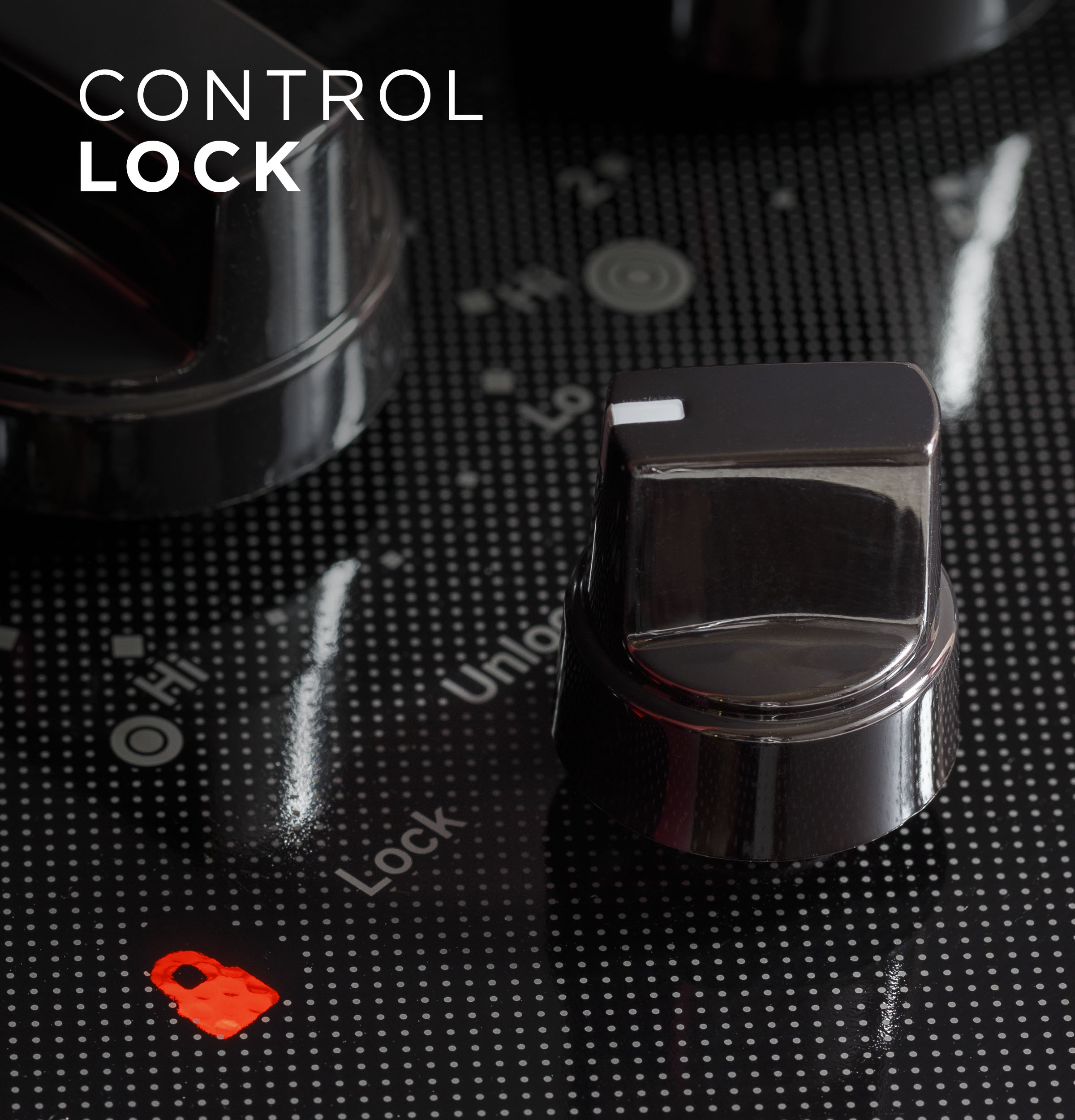

Control Lock
Protect against unintentionally turning your cooktop on with a safety control lock setting

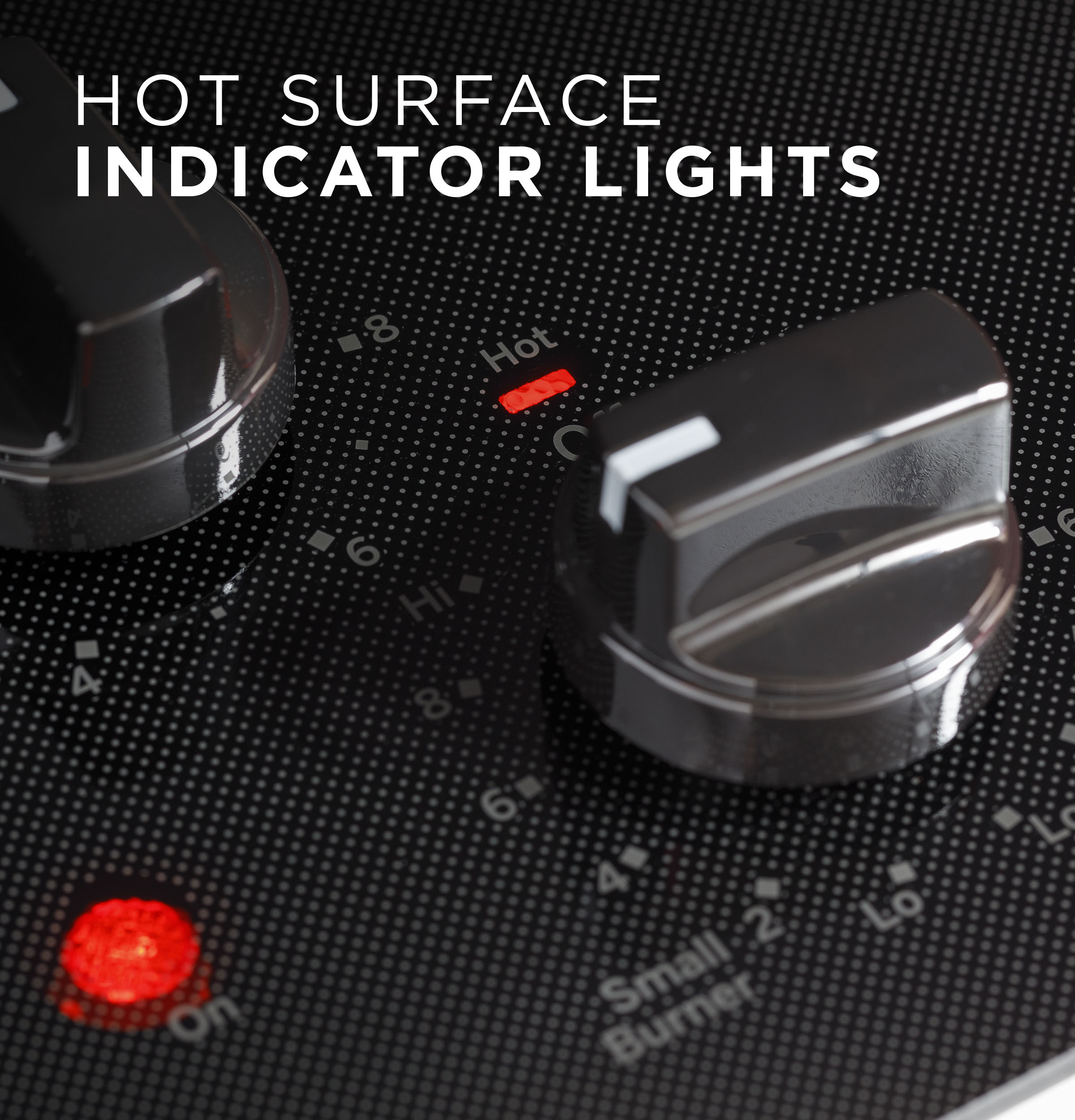

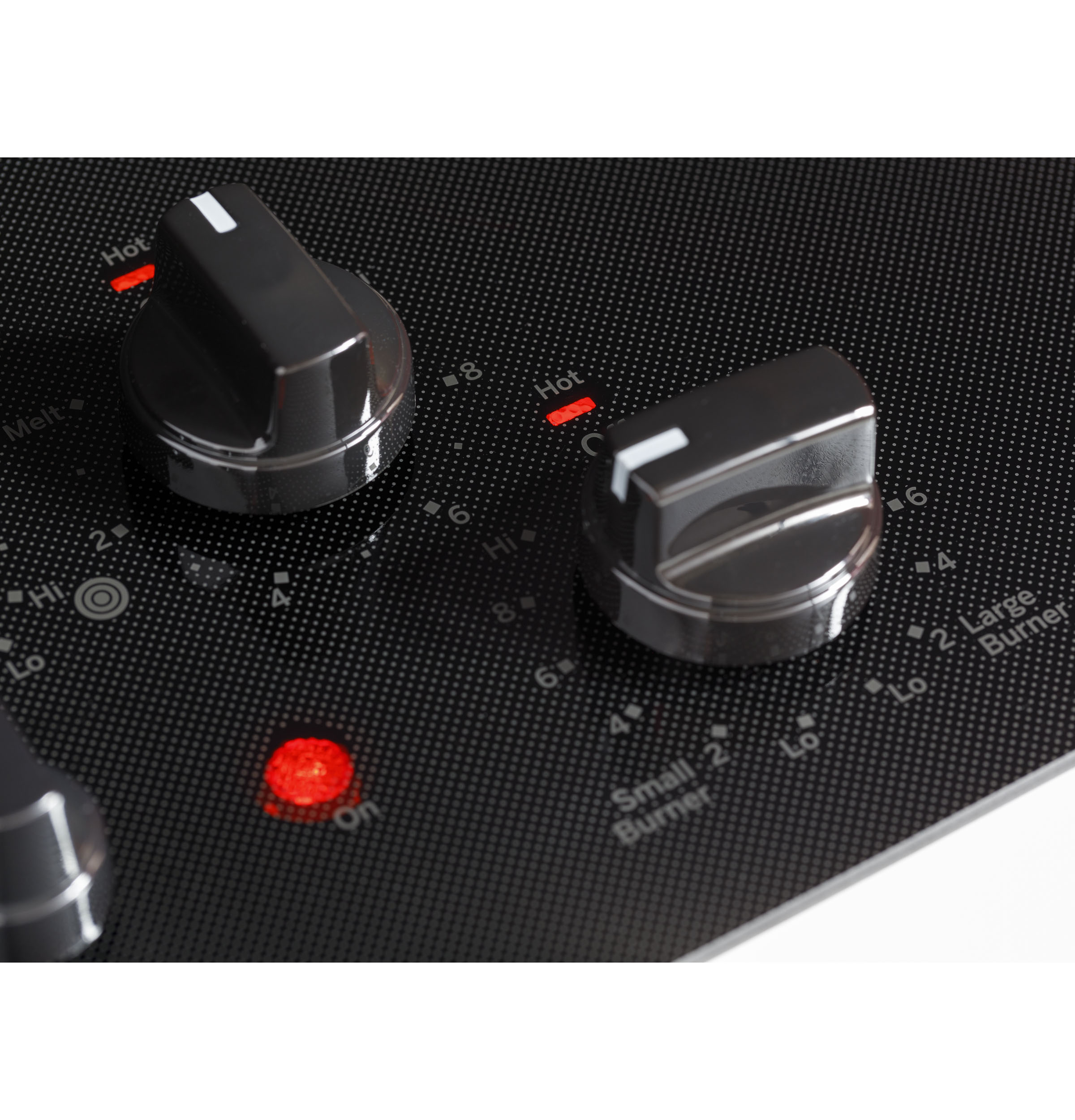

Hot Surface Indicator Lights
A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights
Fit Guarantee
This cooktop will fit your existing 30" cut-out or GE Appliances will help pay for modifications up to $100 See offer criteria and details

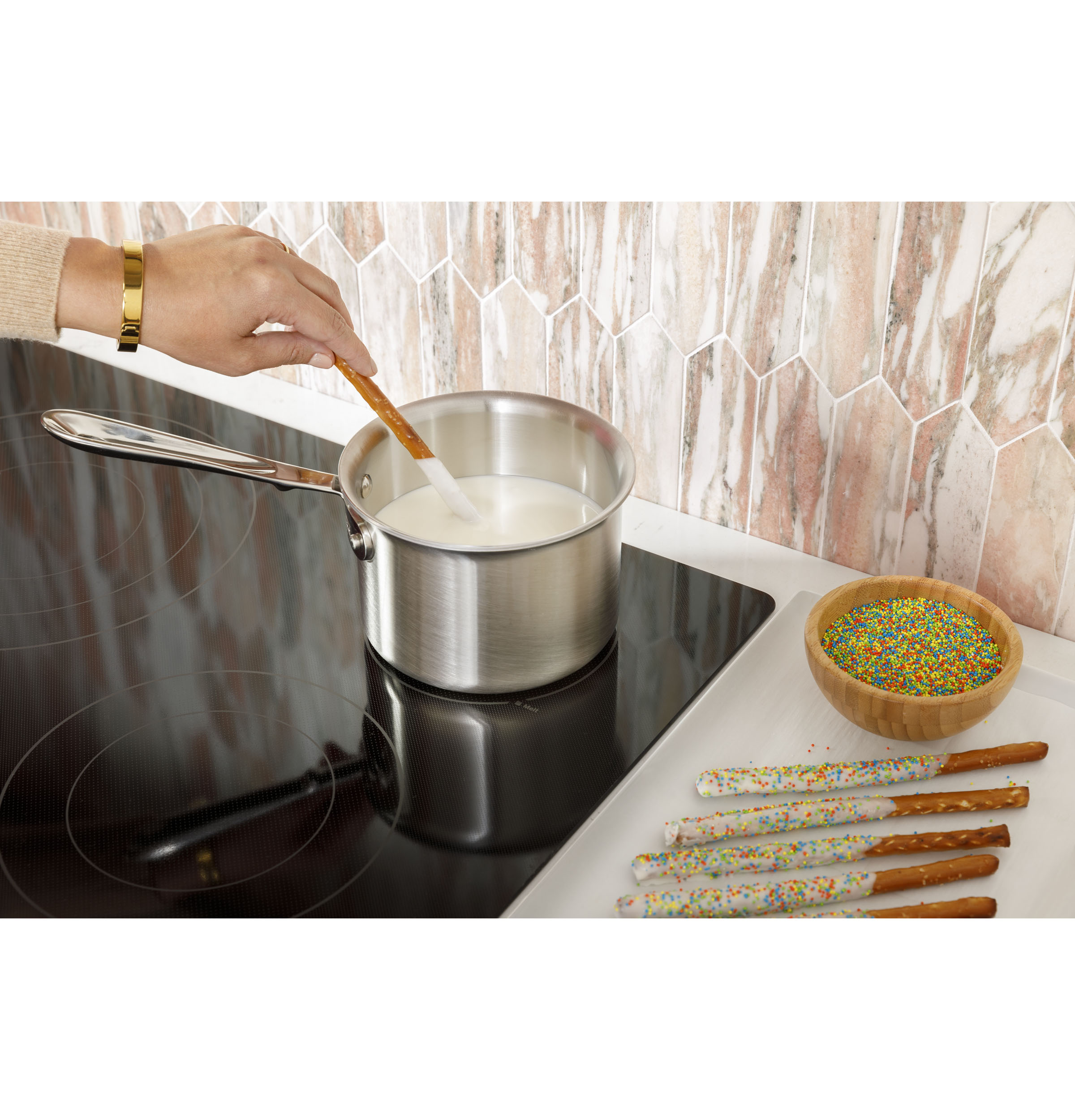

Melt Setting
Gently melt delicate foods without scorching thanks to this optimal melt option cooktop

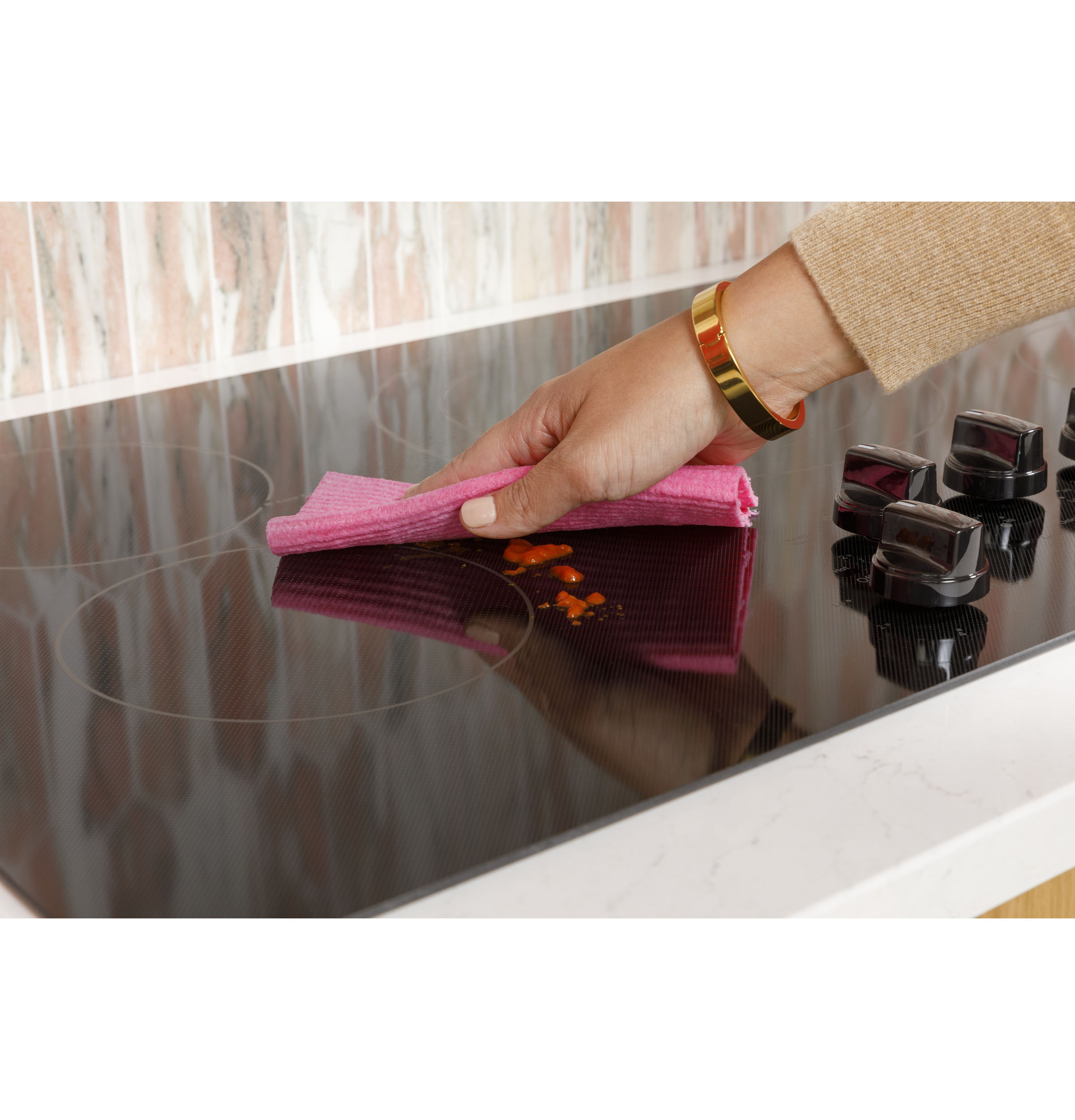

Easy Clean Surface
A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop

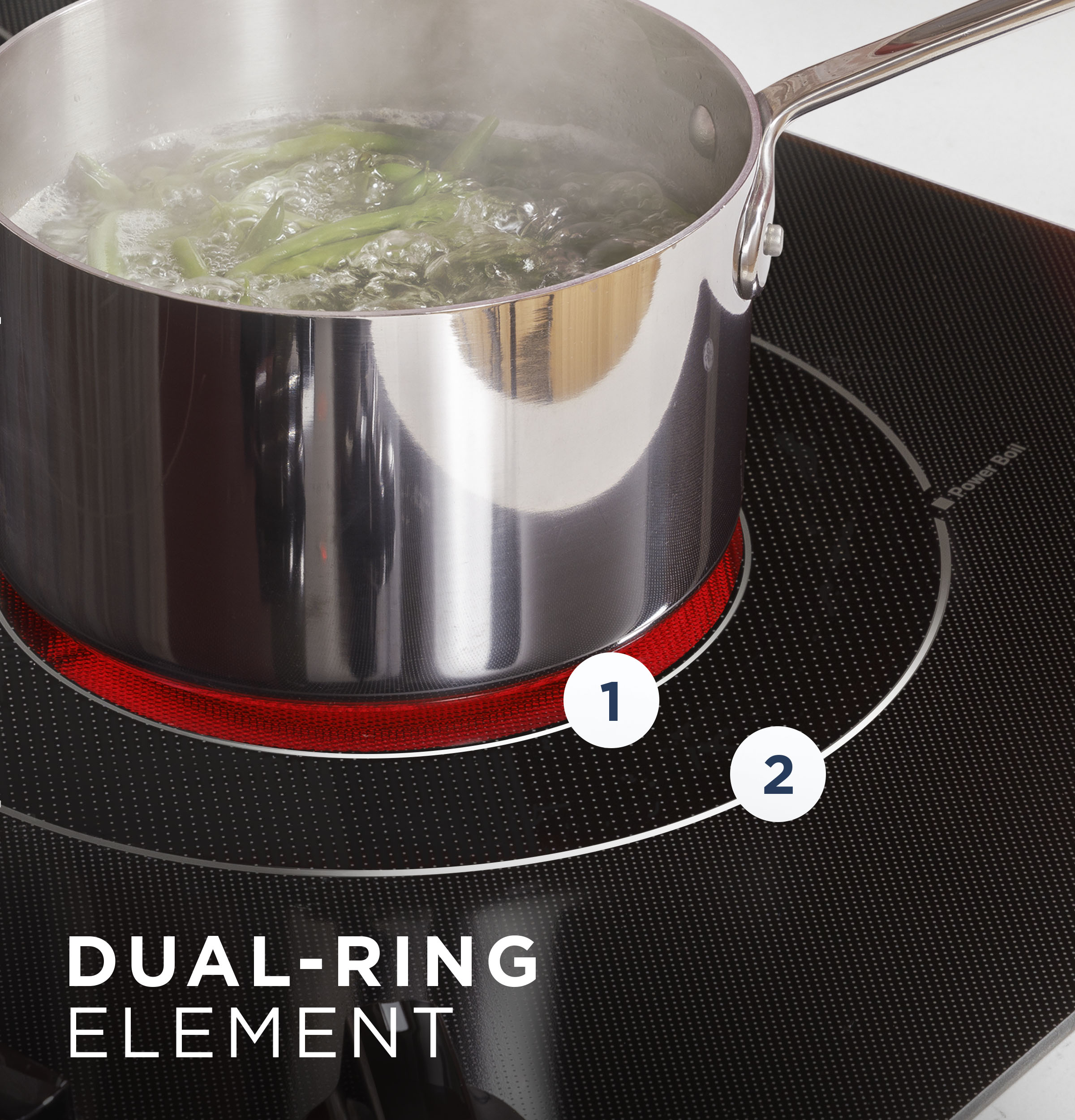

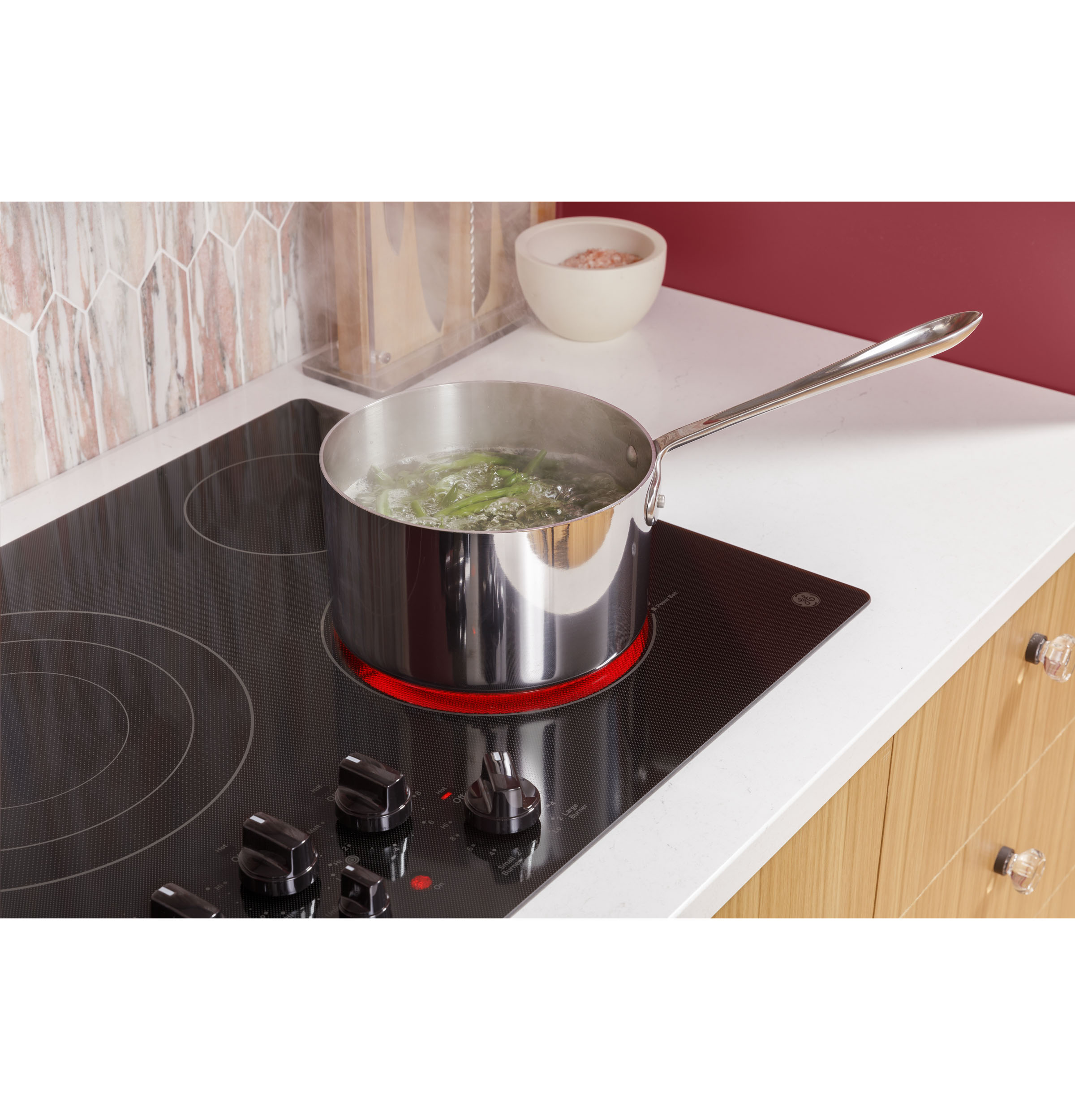

Power Boil on Dual-Ring Element (3,100W)
Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,100-watt flexible element

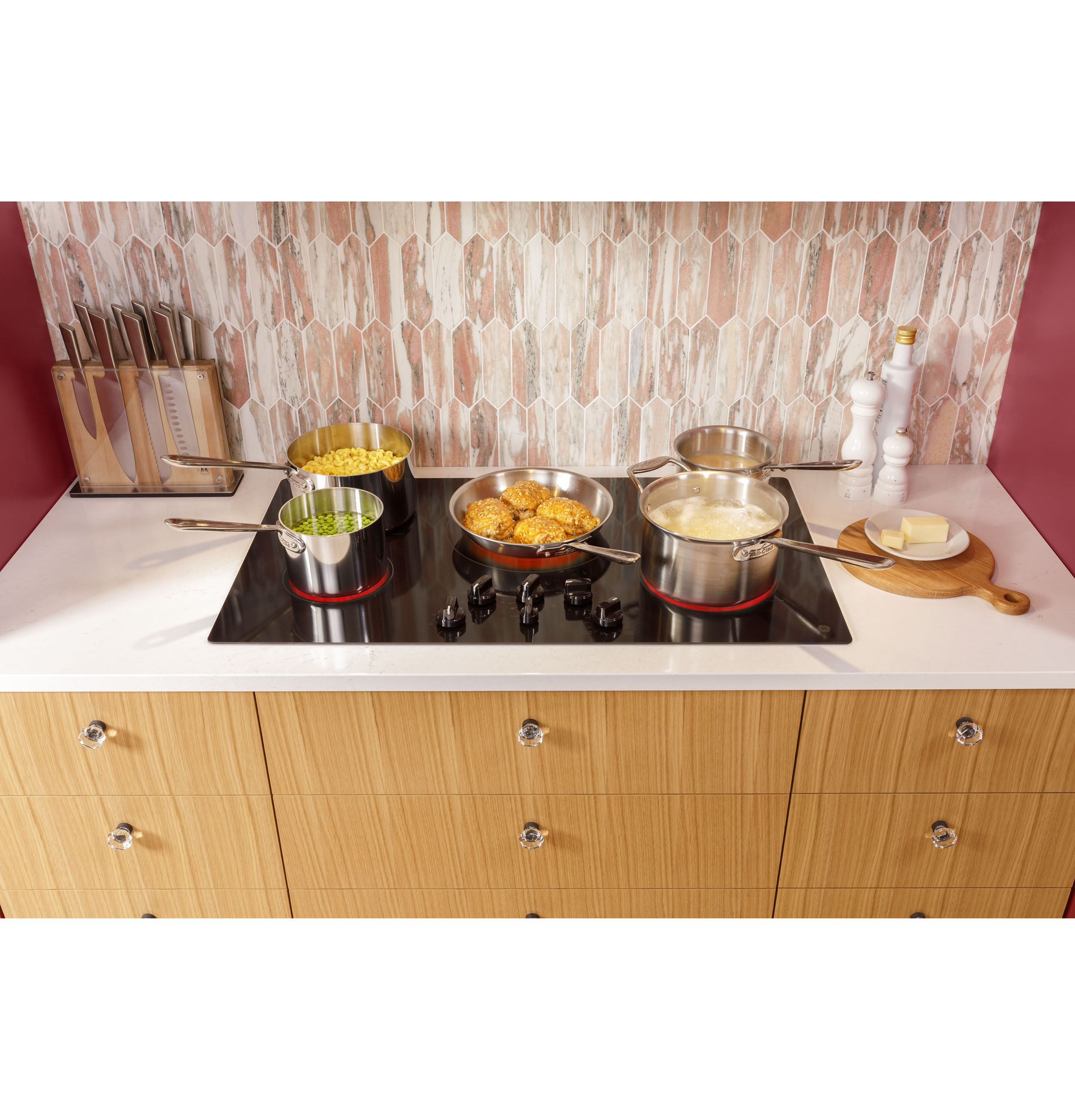

Flexible Cooktop
5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and pots
Certifications
ADA Compliant
CUL
California Prop 65
UL
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

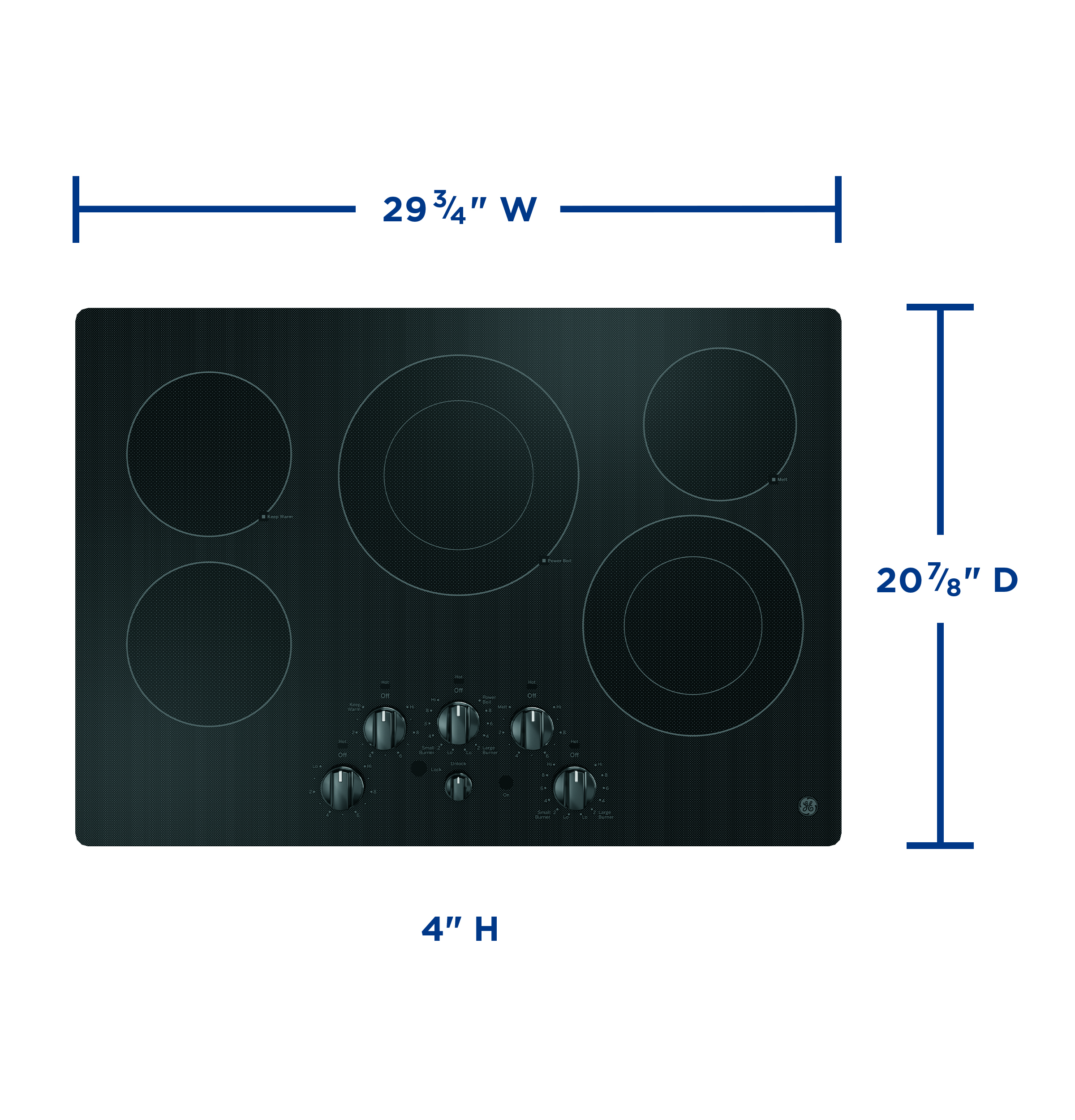

WEIGHTS & DIMENSIONS
| Overall Height | 3.25 in |
| Overall Width | 29.75 in |
| Overall Depth | 21.375 in |
| Cooktop Size | 30 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 40 lb |
| Net Weight | 35 lb |
| Cutout Width (in) | 28.5 |
| Cutout Height (in) | 4 |
| Cutout Depth (in) | 19.625 |
FEATURES
| Filler trim kit | JXTR32B (not included) |
| Cooktop Burner Type | Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Power Boil Burner | Yes |
| Element - Left Front | 7" 1500W |
| Indicator Lights | Surface Element "ON" |
| Dual Ring Burners | Yes |
| Element - Right Front | 8"/5" 2200W Dual-ring |
| Control Location | Front Center |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Control Features | Melt Setting |
| Timer | Yes |
| Element - Left Rear | 7" 1500W (Keep Warm) |

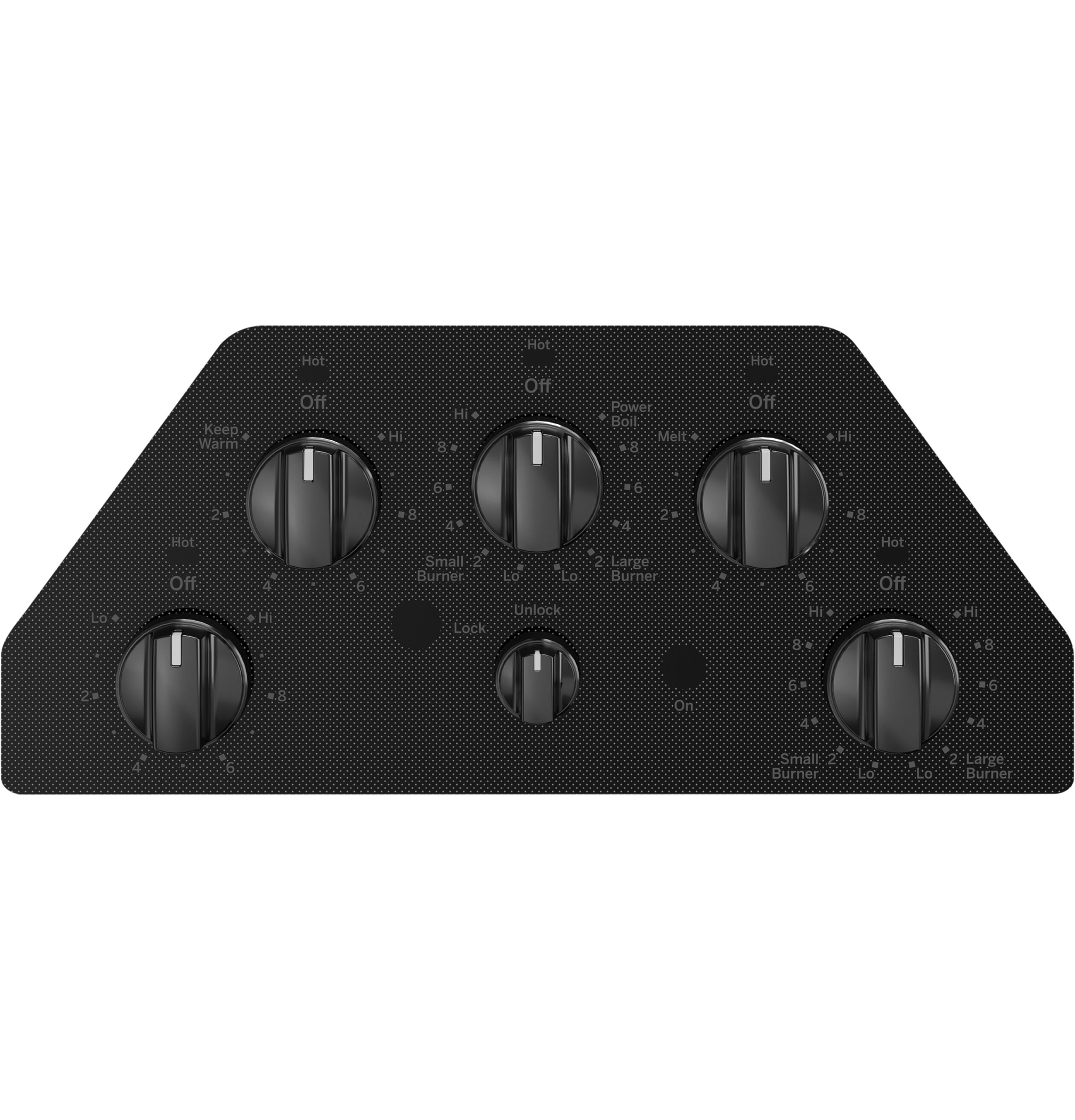

| Control Type | Knob (Infinite switch) |
| Element - Center | 9"/6" 3100W Dual Ring Power Boil |
| Element - Right Rear | 6" 1200W (Melt) |
| Product Type | Cooktop |
| Cooktop Burner Type | 5 Ribbon |
| Cooktop Control Features | Keep-Warm Setting |
| Indicator Lights | 5 Hot Surface |
| Indicator Lights | Red |
POWER / RATINGS
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 9.6 |
| Max. Current Draw (Amps) at 240V | 40.0 |
| Max. Connected Load (kW) at 208V | 7.2 |
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| Recommended Circuit Breaker (Amps) at 208V | 40 |
| Max. Current Draw (Amps) at 208V | 34.6 |
| Hertz | 60 |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
APPEARANCE
| Color Appearance | Black |
| Frameless | Yes |
| Control Knobs | Gloss Black |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 3.25 in. |
| Length | 21.38 in. |
| Weight | 35 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 8.25 in. |
| Shipping Length | 26.38 in. |
| Shipping Weight | 75 lbs. |
| Total of Shipping Weight | 75 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.2 ft³ |
| Dimensional Weight | 14.87 lbs. |
| Total of Cubes | 1.2 ft³ |
| Total of Dimensional Weight | 14.87 lbs. |
