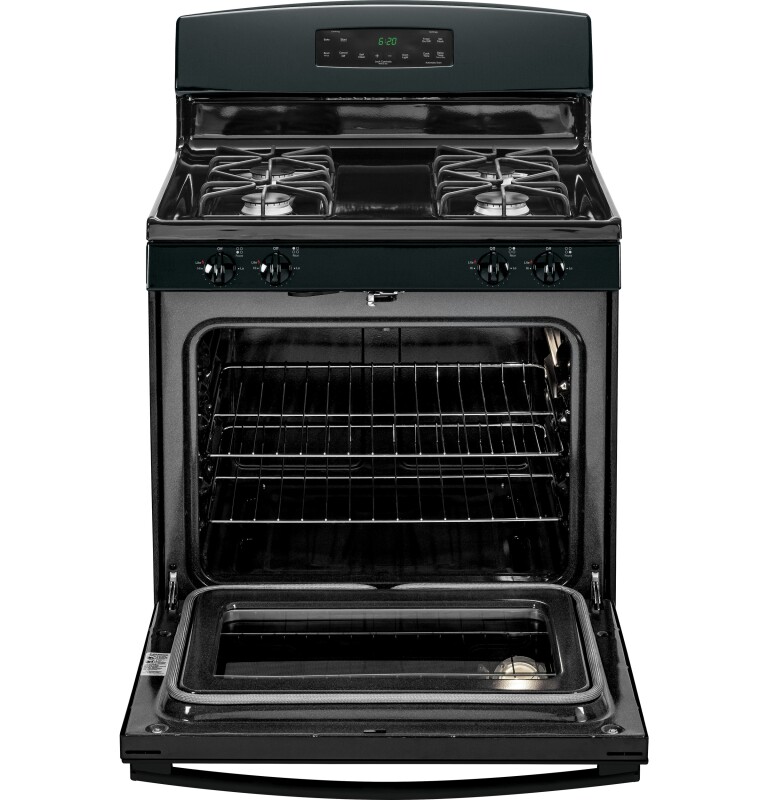

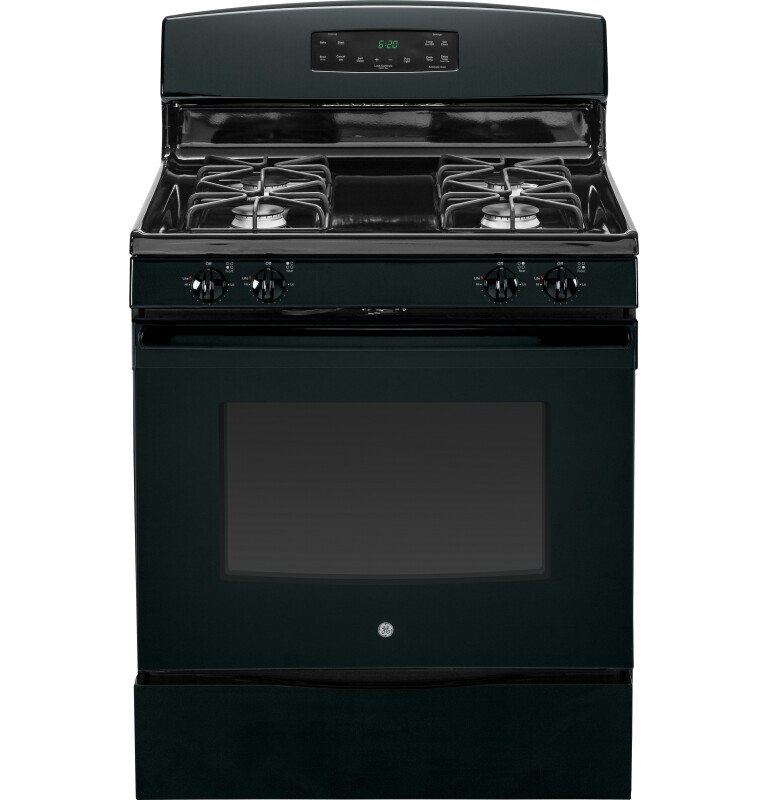

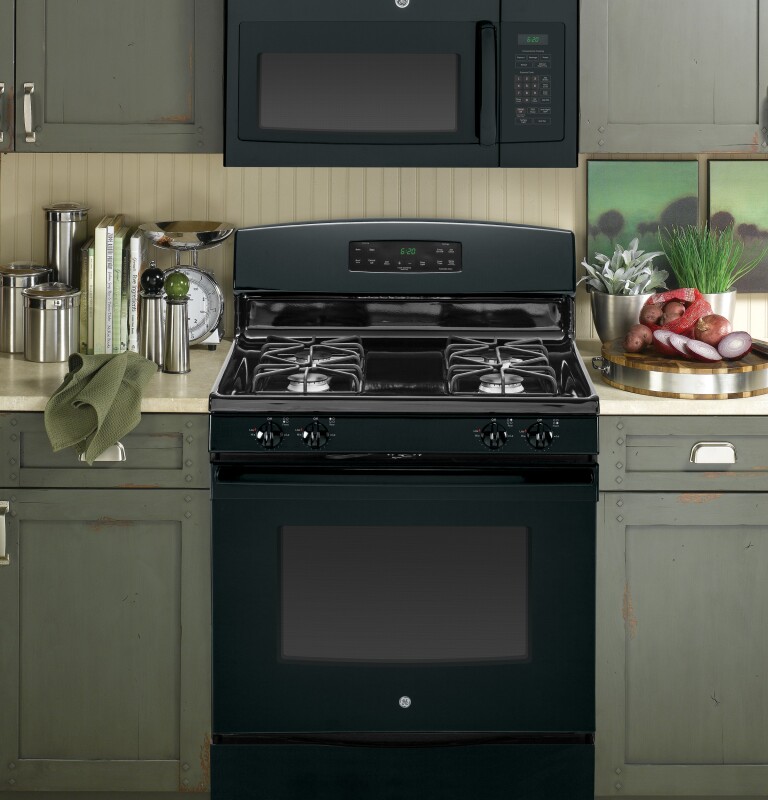

30" Free-Standing Gas Range - JGB620DEFBB
30" Free-Standing Gas Range
Model: JGB620DEFBB
30" Free-Standing Gas Range
Model: JGB620DEFBB
Color : Other
Key Features
12,500 BTU burner
Precise Simmer burner
Self-clean oven
5.0 cu. ft. oven capacity
Sealed cooktop burners
Electronic oven controls
Description
Available from Roberts Appliance repair, serving customers throughout Portland . White House.
Features
12,500 BTU burner
Quickly produces high heat

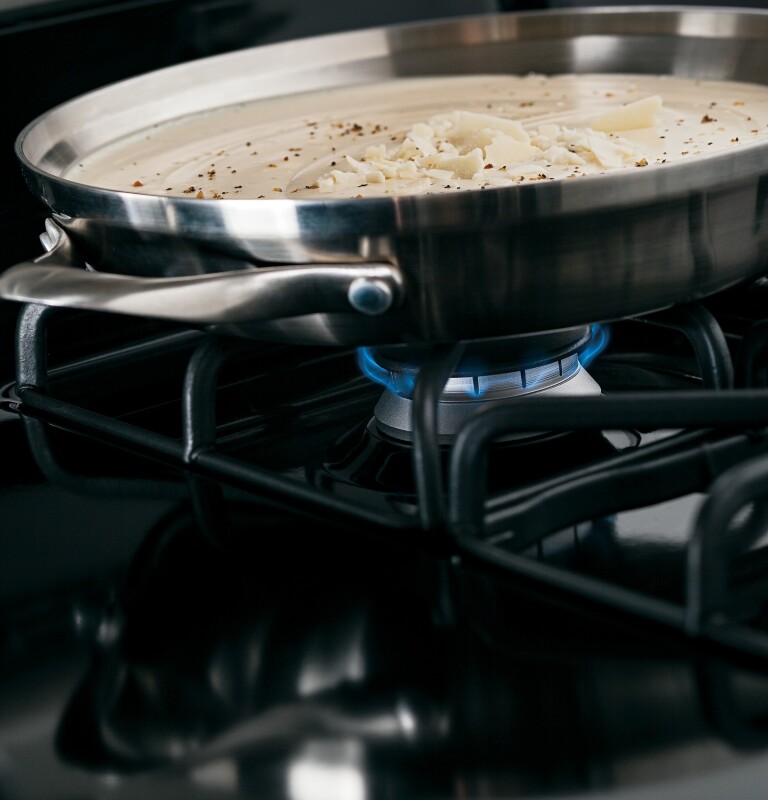

Precise Simmer burner
Delicate foods don’t burn with low, even heat

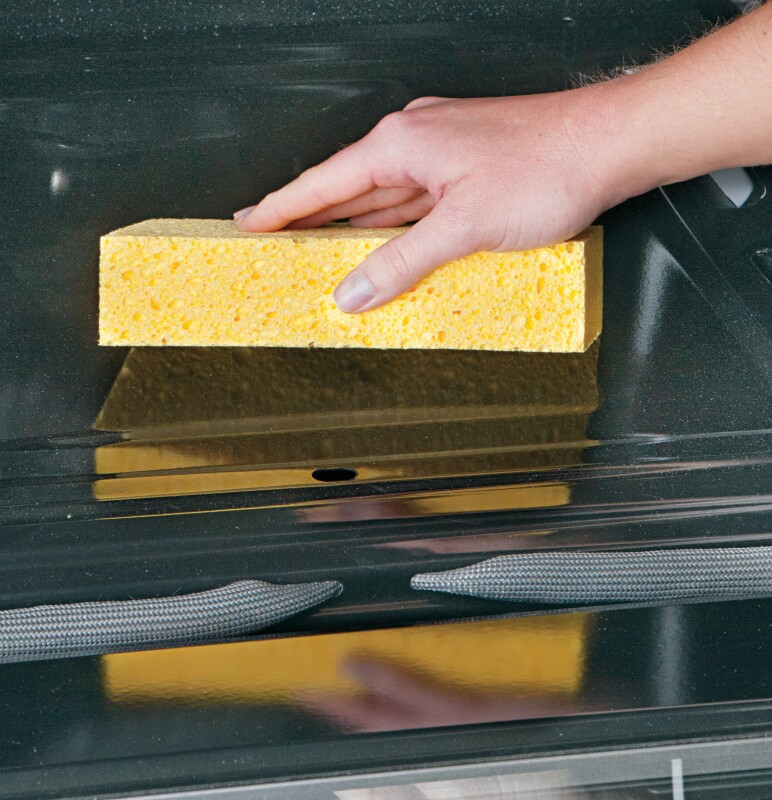

Self-clean oven
Cleans the oven cavity without the need for scrubbing

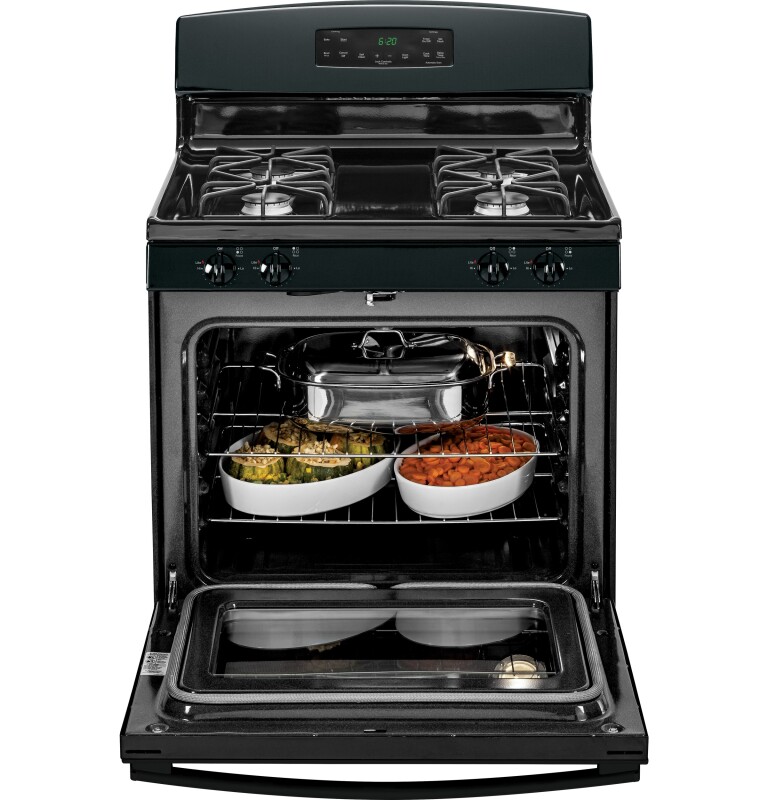

5.0 cu. ft. oven capacity
Cook more dishes at once

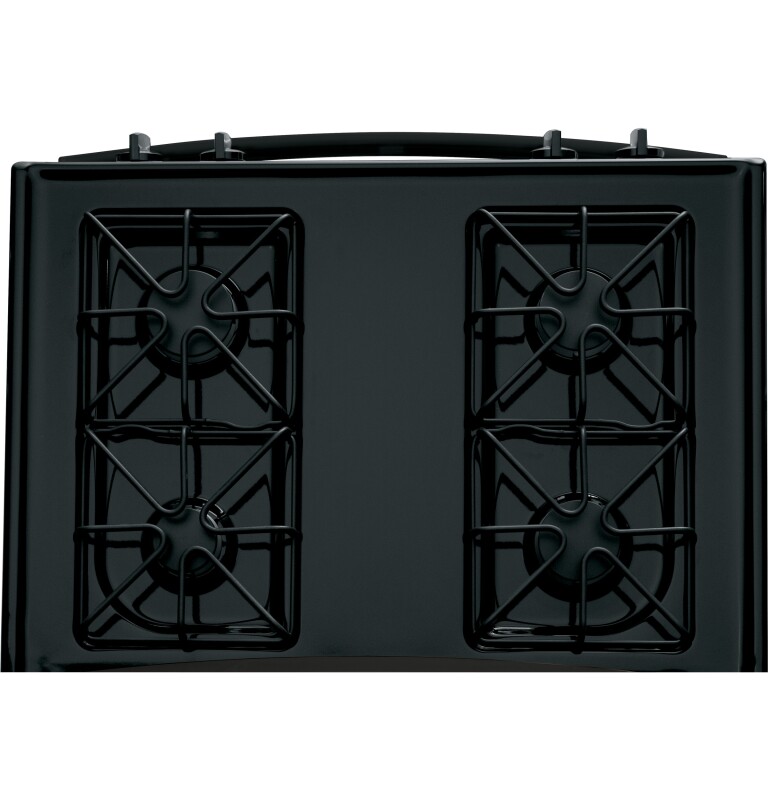

Sealed cooktop burners
Contains spills and make cleaning quick and easy
Electronic oven controls
Electronic touch pads are easy to operate
Certifications
California Prop 65
Specifications
FEATURES

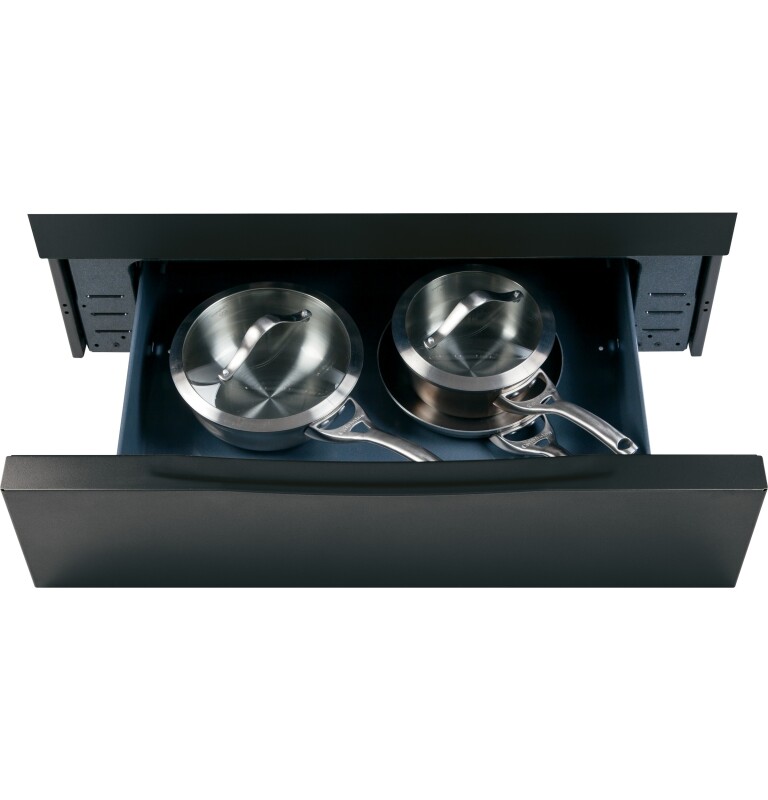

| Drawer Type | Storage |
| Burner - Left Rear | 9,500 BTU |
| Oven Rack Features | 2 Oven Racks |
| Cooktop Surface | Black |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Porcelain-Enamel |
| Control Type | Electronic Touch |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Oven Control Lock Capability |
| Ignition System | Electronic |
| Cooktop Type | Standard Grates |
| One-Piece Drip Pans | Optional Accessory |
| Burner - Right Front | 12,500 BTU |
| Burner - Left Front | 9,500 BTU |
| Cooktop Burner Grate Material | Heavy Steel |
| Oven Cleaning Type | Self-Clean |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Product Type | Free-Standing Single Oven |
| Interior Oven Light | 1 Incandescent |
| Configuration | Range with Storage Drawer |
| Cooking Technology | Traditional |
| Cooktop Burner Type | Sealed |
| Fuel Type | Natural Gas |
| Oven Control Features | Sabbath Mode |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.5; (2) 9.5, (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 9.5; (1) 11.0; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Approximate Shipping Weight | 225 lb |
| Cabinet Width | 30 in |
| Net Weight | 205 lb |
| Overall Depth | 28 3/4 in |
| Overall Height | 46 1/4 in |
| Overall Width | 30 in |
| Depth Without Handle | 26.25 in |
| Depth with Door Open | 46.25 in |
| Height to Cooking Surface (in.) | 36 - 36.25 |
APPEARANCE
| Color Appearance | Black on Black |
| Oven Door Features | Big View Oven Window |
| Cooktop Burner Grate Color | Matte Black |
| Handle | Color-Matched |
| Handle | Designer Style |
| Control Knobs | Color-Matched |
ACCESSORIES
| LP Conversion Kit | Included |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.25 in. |
| Length | 28.75 in. |
| Weight | 205 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 245 lbs. |
| Total of Shipping Weight | 245 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.08 ft³ |
| Dimensional Weight | 286.98 lbs. |
| Total of Cubes | 23.08 ft³ |
| Total of Dimensional Weight | 286.98 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
