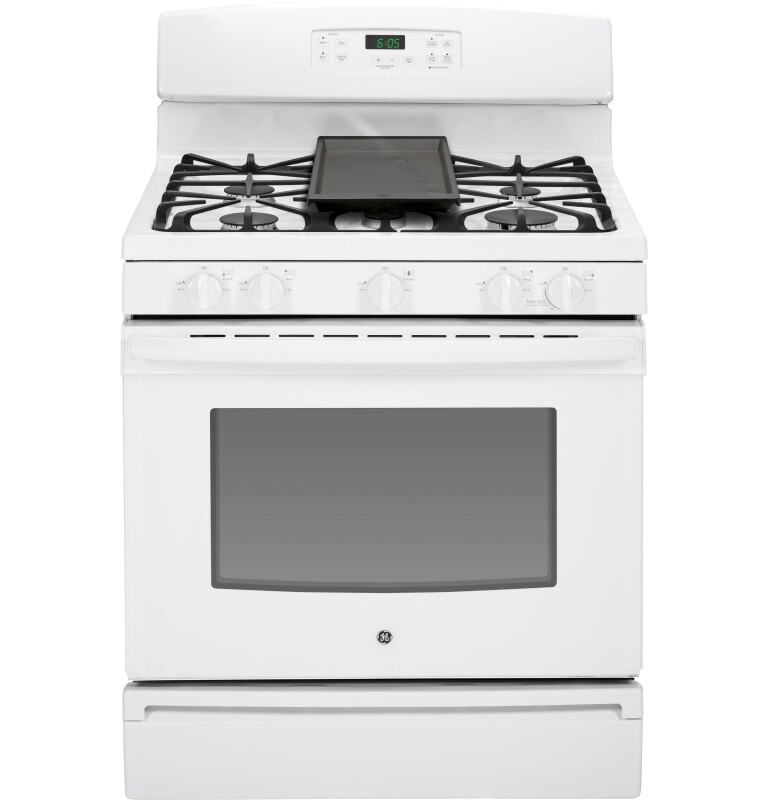

30" Free-Standing Gas Range - JGBS65DEFWW
30" Free-Standing Gas Range
Model: JGBS65DEFWW
Product Video
30" Free-Standing Gas Range
Model: JGBS65DEFWW
Color : White
Key Features
17,000 BTU Power Boil burner
Center oval burner
Precise Simmer burner

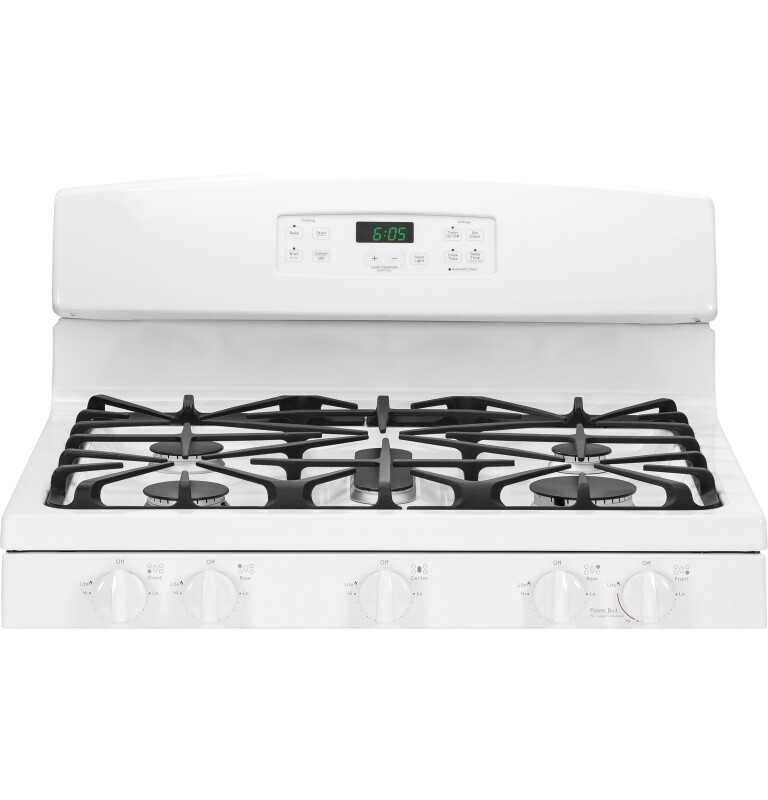

Heavy-cast, continuous grates
Non-stick griddle
Deep-recessed cooktop
Sealed cooktop burners
Standard clean oven
Description
Available from Roberts Appliance repair, serving customers throughout Portland . White House.
Features
17,000 BTU Power Boil burner
Delivers intense heat for fast boiling

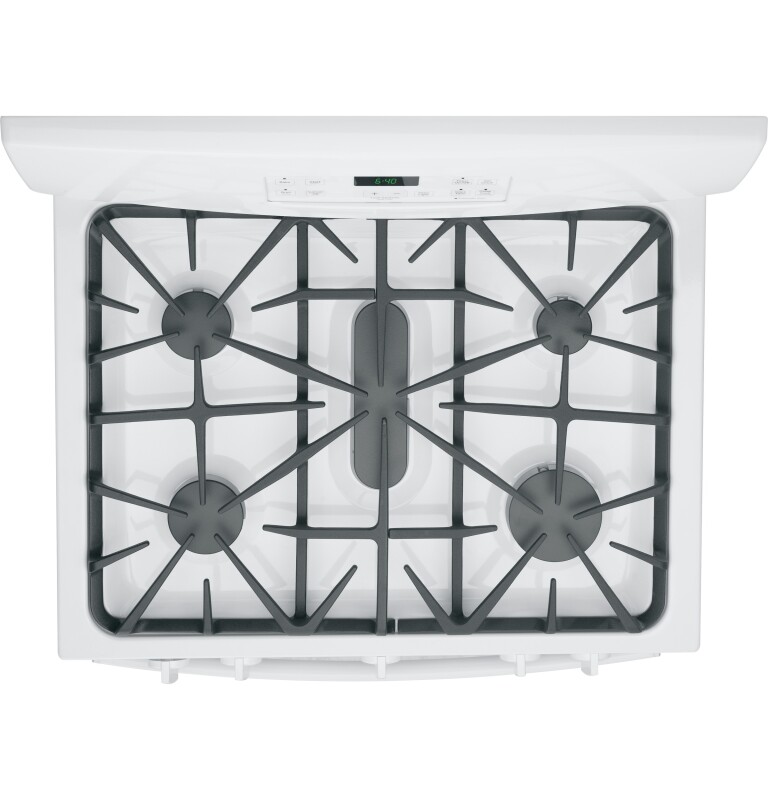

Center oval burner
Large oval fifth burner is ideal for griddle or odd-size cookware
Precise Simmer burner
Delicate foods don’t burn with low, even heat
Heavy-cast, continuous grates
Allow for easy movement of pans between burners

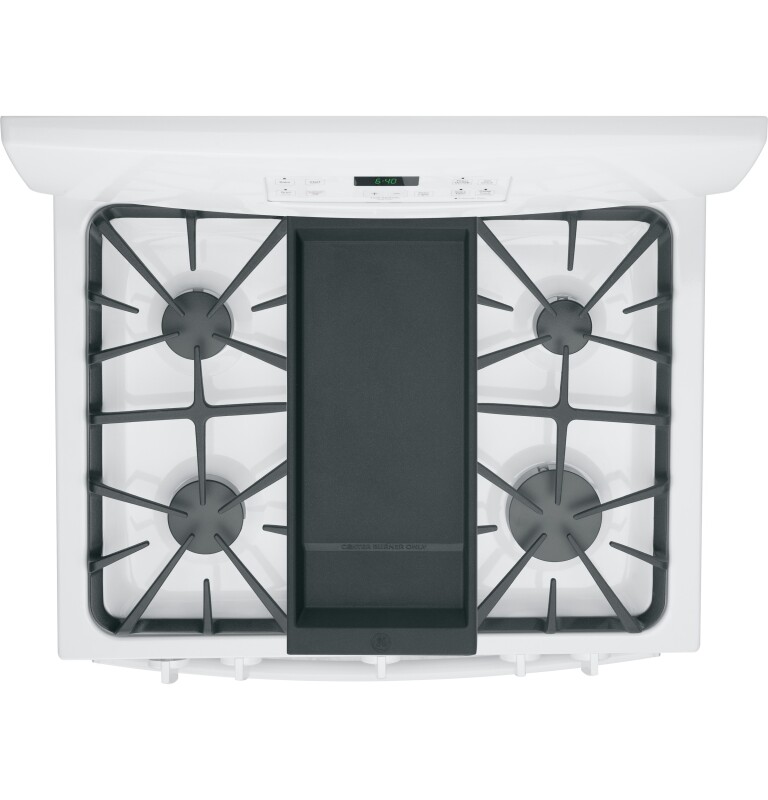

Non-stick griddle
Large non-stick surface perfect for griddle cooking
Deep-recessed cooktop
Contains spills for quick and easy cleaning
Sealed cooktop burners
Contains spills and make cleaning quick and easy
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy

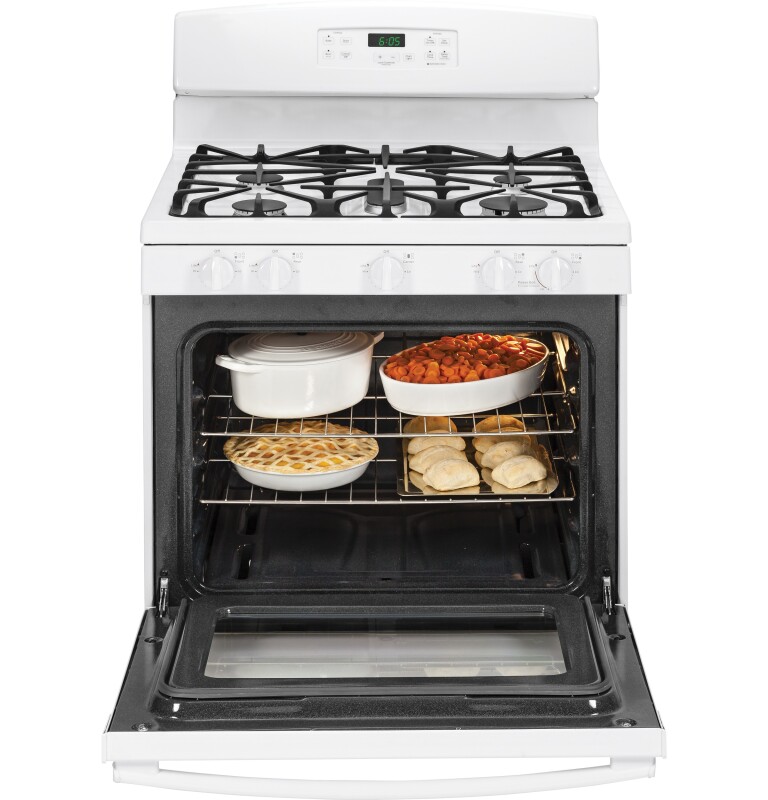

5.0 cu. ft. oven capacity
Enough room to cook an entire meal at once
Certifications
California Prop 65
Specifications

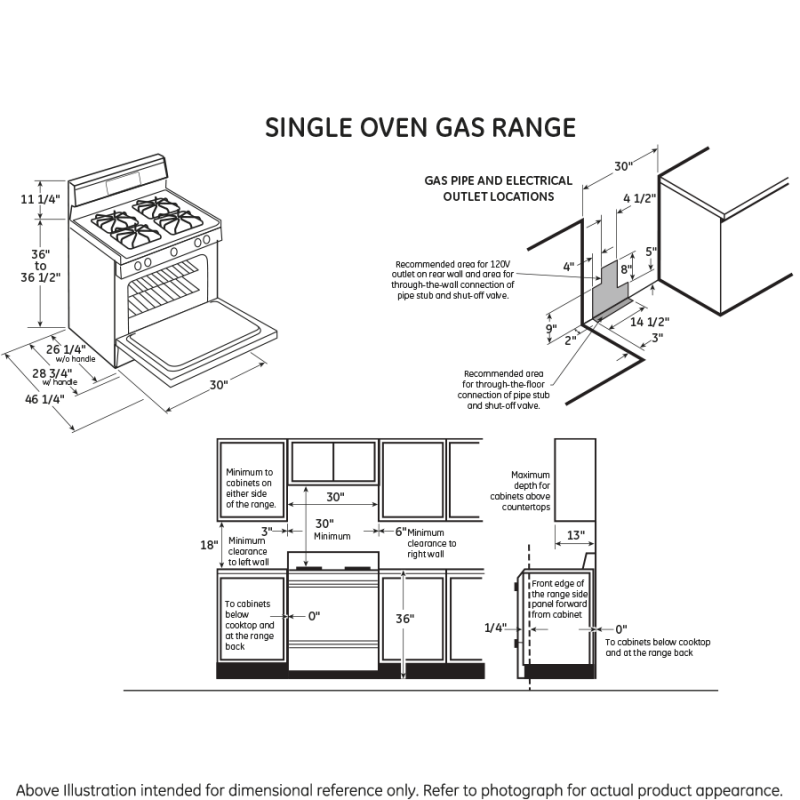

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Height | 47.25 in |
| Overall Depth | 28.75 in |
| Net Weight | 150 lb |
| Depth Without Handle | 26.25 in |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 172 lb |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.25 in. |
| Length | 28.75 in. |
| Weight | 150 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 190 lbs. |
| Total of Shipping Weight | 190 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.58 ft³ |
| Dimensional Weight | 293.19 lbs. |
| Total of Cubes | 23.58 ft³ |
| Total of Dimensional Weight | 293.19 lbs. |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Color-Matched |
| Color Appearance | White |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU Precise Simmer |

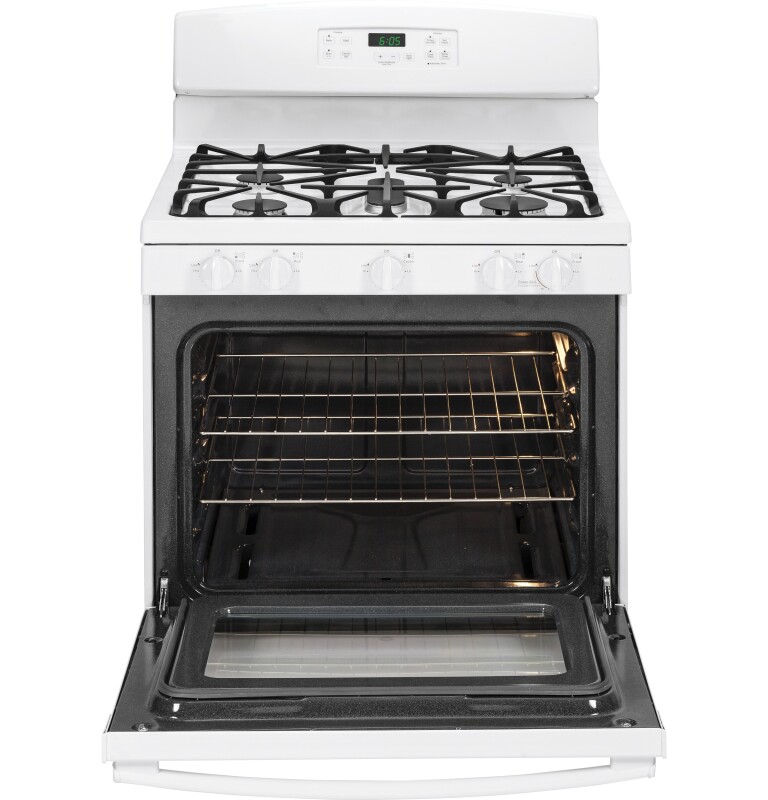

| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Standard Clean |
| Slide - Out Broiler Drawer | Yes |
| Griddle | Semi Integrated |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Continuous Grates with Griddle |
| Cooktop Burner Grate Material | Heavy-cast continuous grates |
| Fuel Type | Natural Gas |
| Burner - Center | 8,000 BTU Oval |
| Interior Oven Light | 1 Incandescent |
| Control Type | Electronic Touch |
| Burner - Left Front | 11,000 BTU |
| Drawer Type | Broiler |
| Cooking Technology | Traditional |
| Configuration | Range with Broiler Drawer |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 17,000 BTU Power Boil |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| One-Piece Drip Pans | Optional Accessory |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Auto Oven Shut-Off |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.5; (2) 9.5, (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 0.0 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 Bake / 0.0 Broiler |
FILTER
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Fuel Type | Gas |
| App Filter - Cooking Technology | Traditional |
| App Filter - Convection | No |
| App Filter - Drawer Type | Broiler |
| App Filter - Cleaning Type | Manual |
| App Filter - Cooktop Type | Continuous Grates with Griddle |
CAPACITY
| Total Capacity (cubic feet) | 5 cu ft |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
ACCESSORIES
| LP Conversion Kit | Included |
