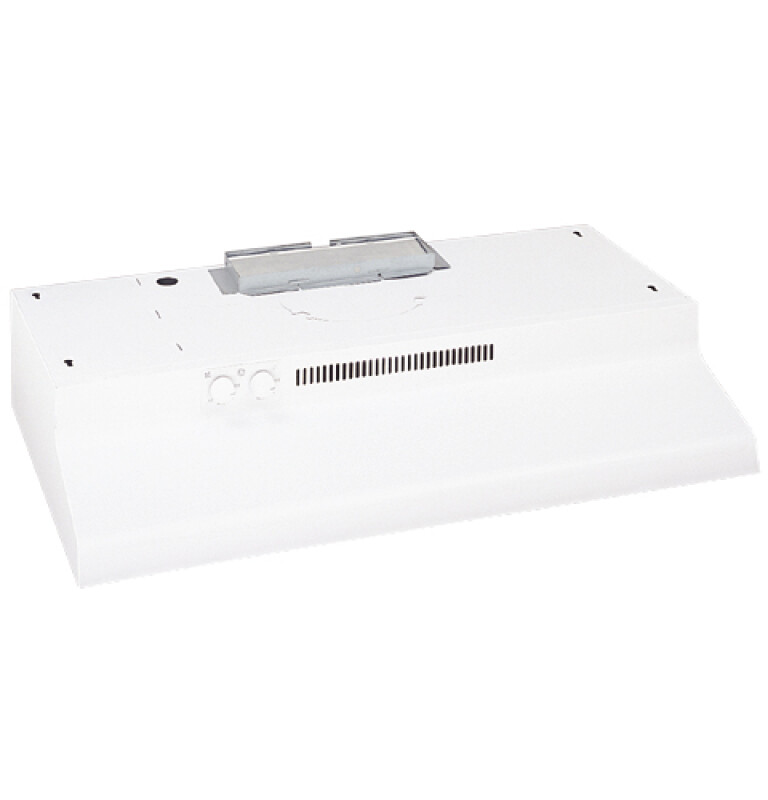

Deluxe Range Hood - JV347XAA
Deluxe Range Hood
Model: JV347XAA
Deluxe Range Hood
Model: JV347XAA
Color : Almond
Key Features
Convertible venting
Vertical and rear exhaust
Variable speed fan control
Cooktop light
Removable grease filter
Round and rectangular ducting
Available from Roberts Appliance repair, serving customers throughout Portland . White House.
Features
Convertible venting
Hood configuration can be changed to fit the needs of various installation requirements
Vertical and rear exhaust
Provides the option of connecting duct work to either the rear or the top of the hood
Variable speed fan control
The powerful variable speed exhaust system effectively pulls smoke and vapors out of the kitchen
Cooktop light
Provides light to illuminate cooking surface below hood
Removable grease filter
Durable filters can be removed for easy cleaning and maintenance
Round and rectangular ducting
Hood is designed to fit either standard round or rectangular duct work
Certifications
California Prop 65
Specifications
Dimensions & Weight
| Width | 29.88 in. |
| Height | 5.5 in. |
| Length | 17.5 in. |
| Weight | 13 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 10.5 in. |
| Shipping Length | 22.5 in. |
| Shipping Weight | 53 lbs. |
| Total of Shipping Weight | 53 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.66 ft³ |
| Dimensional Weight | 20.69 lbs. |
| Total of Cubes | 1.66 ft³ |
| Total of Dimensional Weight | 20.69 lbs. |
FEATURES
| Fan Speed Control | 3-Speed |
| Cooktop Lighting | 1 |
| Filter Size (sq. in.) | 90 |
| Exhaust Options | 7" Round Duct |
| Damper Included (Rectangular) | Yes |
| Sones Rating : Top Exhaust-Round | 8.0 |
| Vertical Exhaust-Round (Cubic Feet / Minute) | 180 |
| Sones Rating : Rear Exhaust | 8.0 |
| Rear Exhaust (Cubic Feet / Minute) | 160 |
| Removable Grease Filter(s) | Disposable 1-Piece Filter |
| Exhaust Options | 3-1/4" x 10" Rectangular Duct |
WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Net Weight | 13 lb |
| Approximate Shipping Weight | 15 lb |
| Overall Depth | 17 1/2 in |
| Overall Height | 5 1/2 in |
| Overall Width | 29 7/8 in |
ACCESSORIES
| Optional Damper Accessory (Round) | JXDA22 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
POWER / RATINGS
| Amp Rating at 120V | 2.5 |
ECONOMICAL / QUIET
| Non-Vented | Optional |
| Venting Type | Externally Vented |
APPEARANCE
| Color Appearance | Almond on almond |
