30” Free-standing Electric Radiant Smooth Cooktop Range - JB480DTBB
30” Free-standing Electric Radiant Smooth Cooktop Range
Model: JB480DTBB
Product Video
30” Free-standing Electric Radiant Smooth Cooktop Range
Model: JB480DTBB
Color : Black
Key Features
5.0 cu. ft. oven capacity
Front controls
Self-clean oven
Dual-element Bake
Removable full-width storage drawer
Description
Available from Roberts Appliance repair, serving customers throughout Portland . White House.
Features

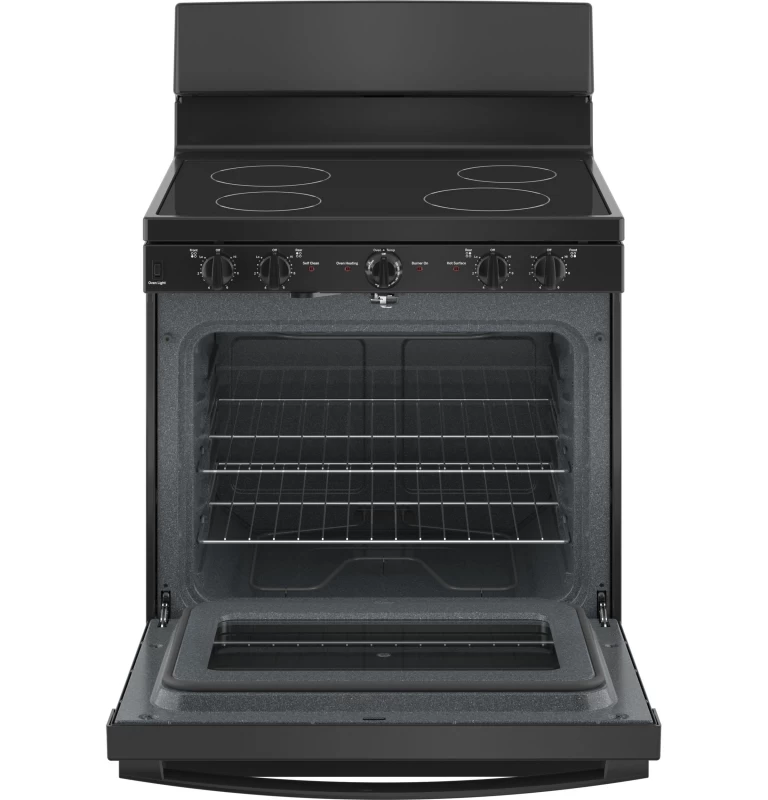

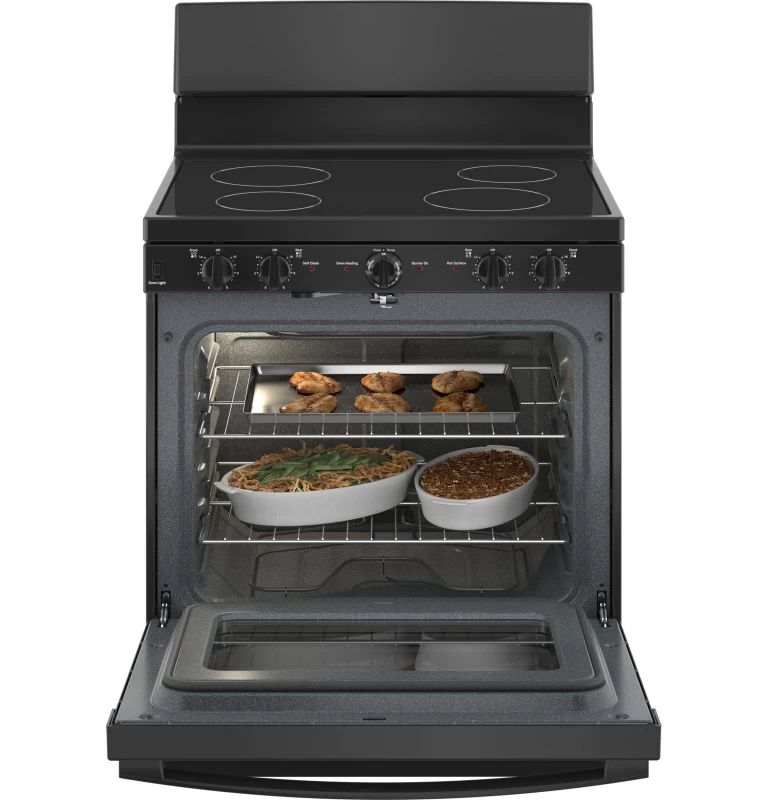

5.0 cu. ft. oven capacity
Cook more dishes at once

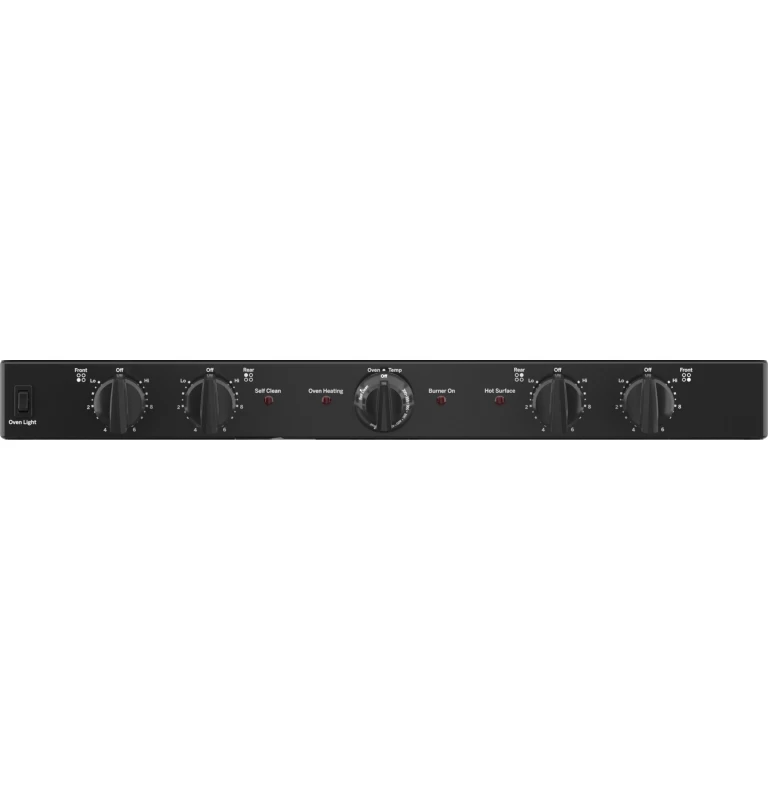

Front controls
Easily-accessible controls make it simple to control the stovetop and oven
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Dual-element Bake
Upper and lower elements produce even heat and great results
Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access
Certifications
ADA Compliant
California Prop 65
UL
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Depth | 29 in |
| Overall Height | 47 in |
| Net Weight | 141 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Depth with Door Open | 46.75 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 161 lb |
| Height to Cooking Surface (in.) | 36 - 36.5 |
FEATURES
| Configuration | Range with Storage Drawer |
| Element - Right Front | 8" 2000W |
| Oven Features | 6-Pass Broil Element |
| Storage Drawer Features | Removable Full-Width |
| Fuel Type | Electric |
| Oven Interior | 1 Incandescent Light |
| Oven Control Features | Self-Cleaning Cycling Light |
| Cooktop Burner Type | Smoothtop |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 6" 1500W |
| Oven Cleaning Type | Self-Clean |
| Hot Surface Indicator Lights | Yes |
| Product Type | Free-Standing Single Oven |
| Heating Element "ON" Indicator Light | Yes |

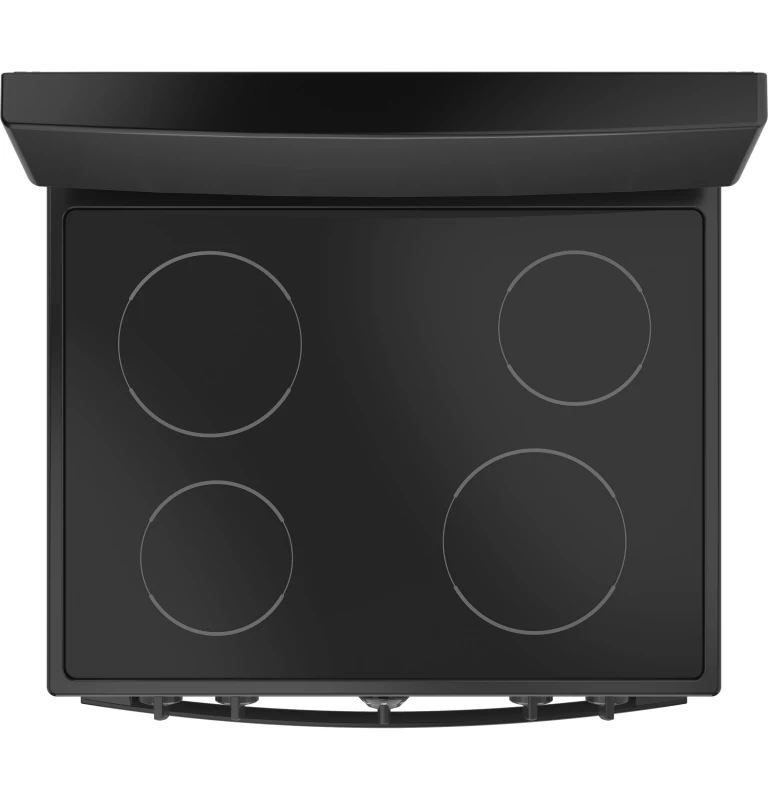

| Cooktop Type | Radiant Smoothtop |
| Element - Left Rear | 8" 2000W |
| Element - Right Rear | 6" 1500W |
| Cooktop Surface | Black Ceramic Glass |
| Control Location | Front |
| Drawer Type | Storage |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Control Type | Rotary knobs |
| Cooking Technology | Traditional |
| Cooktop Burner Type | Radiant |
| Oven Control Features | Oven "ON" Light |
| Oven Features | 4-Pass Bake Element |
POWER / RATINGS
| KW Rating at 240V | 10.5 |
| Bake Wattage | 2585W |
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3410W |
| KW Rating at 208V | 7.9 |
| Amp Rating at 240V | 40 |
| Hertz | 60 |
APPEARANCE
| Oven Door Features | Glass Door |
| Handle | Designer Style |
| Textured Steel Side Panels | Yes |
| Control Knobs | Color-Matched |
| Handle Color | Black |
| Color Appearance | Black |
| Oven Door Features | Big View Oven Window |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47 in. |
| Length | 29 in. |
| Weight | 141 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52 in. |
| Shipping Length | 34 in. |
| Shipping Weight | 181 lbs. |
| Total of Shipping Weight | 181 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.66 ft³ |
| Dimensional Weight | 294.17 lbs. |
| Total of Cubes | 23.66 ft³ |
| Total of Dimensional Weight | 294.17 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
