30" Free-Standing Gas Range with Warming Drawer - JGB800DEPBB

This product has been discontinued by the manufacture and is no longer available.

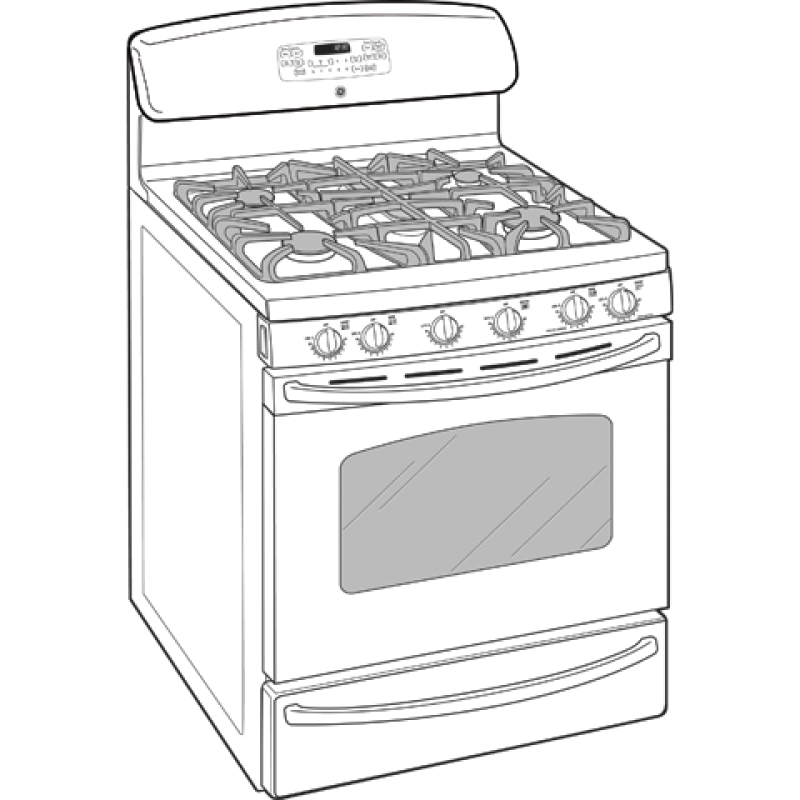

30" Free-Standing Gas Range with Warming Drawer

Model: JGB800DEPBB

30" Free-Standing Gas Range with Warming Drawer JGB800DEPBB30" Free-Standing Gas Range with Warming Drawer JGB800DEPBB30" Free-Standing Gas Range with Warming Drawer JGB800DEPBB
30" Free-Standing Gas Range with Warming Drawer JGB800DEPBB
30" Free-Standing Gas Range with Warming Drawer JGB800DEPBB
30" Free-Standing Gas Range with Warming Drawer JGB800DEPBB

Color : Black

30" Free-Standing Gas Range with Warming Drawer JGB800DEPBB
Black

Type : Gas

Key Features

  • Self-clean oven

  • Super-large 5.0 oven capacity

  • Heavy-cast, continuous grates

  • Warming drawer

  • Reversible cast-iron griddle/grill

  • Power Boil 17,000 burner

  • Center oval burner

  • Deep-recessed cooktop

Read More

Description

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking.Matte-finish, connected cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily.47 H x 30 W x 26 5/8 D

Available from Roberts Appliance repair, serving customers throughout Portland . White House.

Features
Specifications
Certifications

Features

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Super-large 5.0 oven capacity

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking

Heavy-cast, continuous grates

Matte-finish, connected cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily

Warming drawer

The convenient drawer keeps foods warm and ready to serve and helps makes meal coordination easier

Reversible cast-iron griddle/grill

Provides the flexibility to sear meats on the grill and cook delicate meals on the griddle

Power Boil 17,000 burner

This powerful element instantly supplies the intense heat need for boiling, sautéing and stir frying

Center oval burner

Oval fifth burner in the center of the cooktop is large to accommodate odd-sized cookware or griddles

Deep-recessed cooktop

Deep recessed cooktop keeps spills, and everything else, contained in one area that’s easy to wipe clean

Precise Simmer burner

Allows for low, even heat distribution that is ideal for delicate foods and sauces

TrueTemp oven system

This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

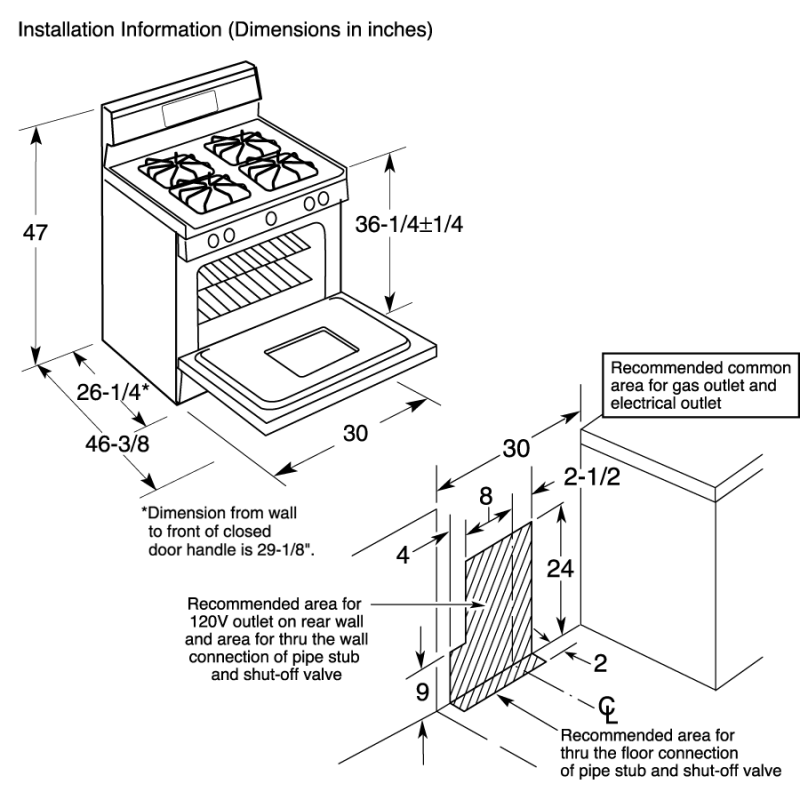

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Depth26.625 in
Overall Height47 in
Net Weight200 lb
Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19
Height to Cooking Surface (in.)36 1/4 +/- 1/4
Depth with Door Open 90°46.375 in
Cabinet Width30 in
Approximate Shipping Weight220 lb

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19

Dimensions & Weight

Width30 in.
Height47 in.
Length26.63 in.
Weight200 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52 in.
Shipping Length31.63 in.
Shipping Weight240 lbs.
Total of Shipping Weight240 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.73 ft³
Dimensional Weight270.08 lbs.
Total of Cubes21.73 ft³
Total of Dimensional Weight270.08 lbs.

FEATURES

ConfigurationRange with Warming Drawer
Cleaning TimeVariable
Ignition SystemElectronic
Fuel TypeNatural Gas
Oven InteriorInterior Oven Light
Cooktop Burner TypeSealed
Oven Rack FeaturesEmbossed Rack Positions
Power Boil Burner(1) 17,000 BTU
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean
High Output Burner(1) 12,000 BTU
GriddleReversible Cast Grill/Griddle
All-Purpose Burners(1) 9,500 BTU
Cooktop Burner Grate MaterialHeavy Cast
Valves (Degree of Turn)270
Cooktop Burner Grate FeaturesDishwasher Safe
BackguardScratch-Resistant
Center Oval Burner(1) 10,000 BTU
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
Control TypeQuickSet V
Precise Simmer Burner(1) 5,000 BTU/140F degree simmer
Cooking TechnologyTraditional
Cooktop SurfaceDeep Recessed
Oven Control FeaturesAuto Self Clean

APPEARANCE

Cooktop Burner Grate ColorBlack
Oven Door FeaturesBig Hearth Oven Window
HandleColor-Matched Sculptured
Frameless Oven Door(s)Black Glass
Control KnobsDesigner-Style
Color AppearanceBlack

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 17.0; (1) 12.0; (1) 10.0; (1) 9.5; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 9A
Warming Drawer Wattage450
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Total Capacity (cubic feet)5 cu ft
